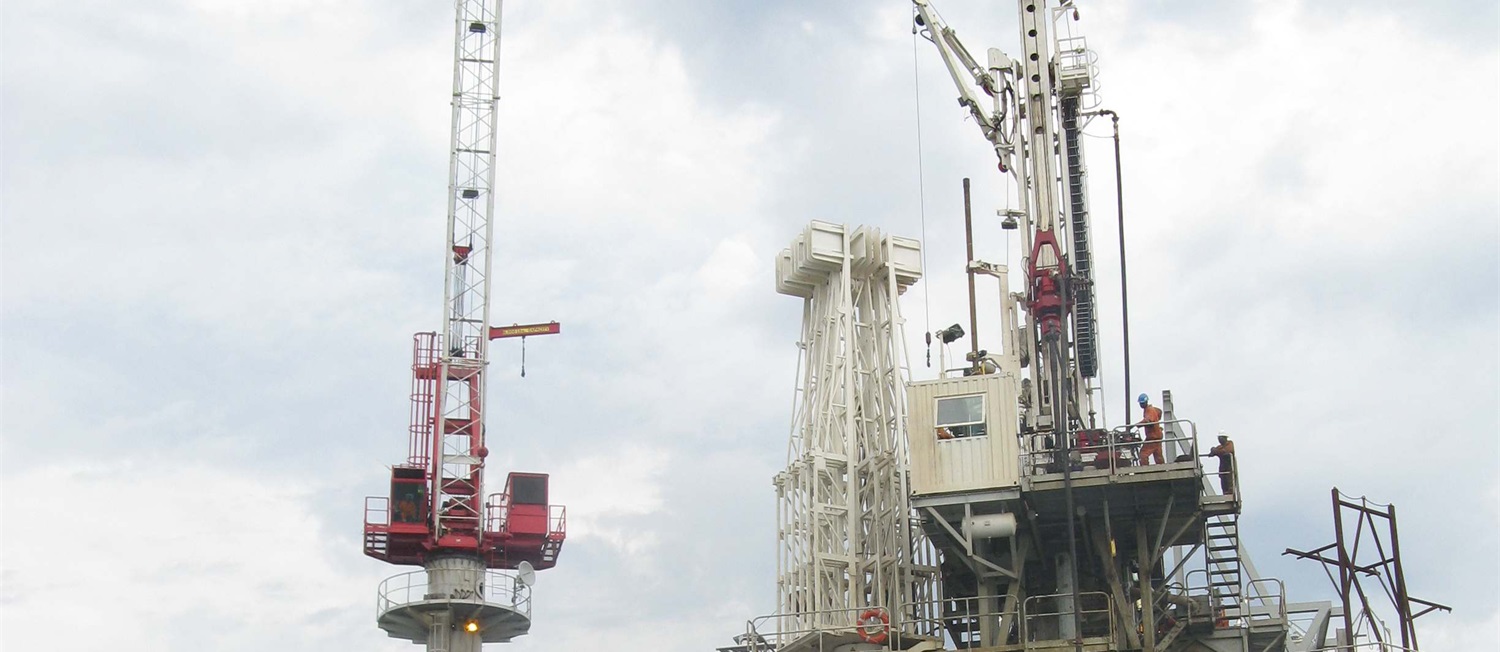

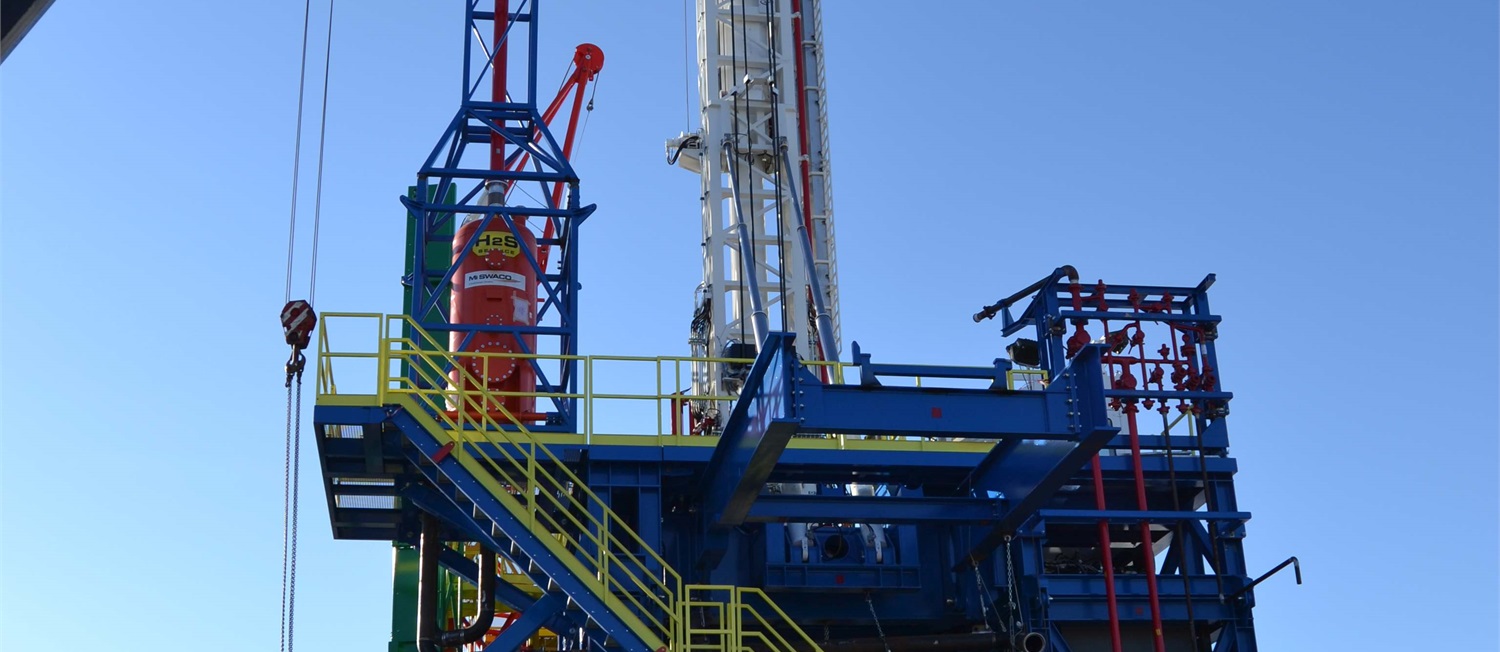

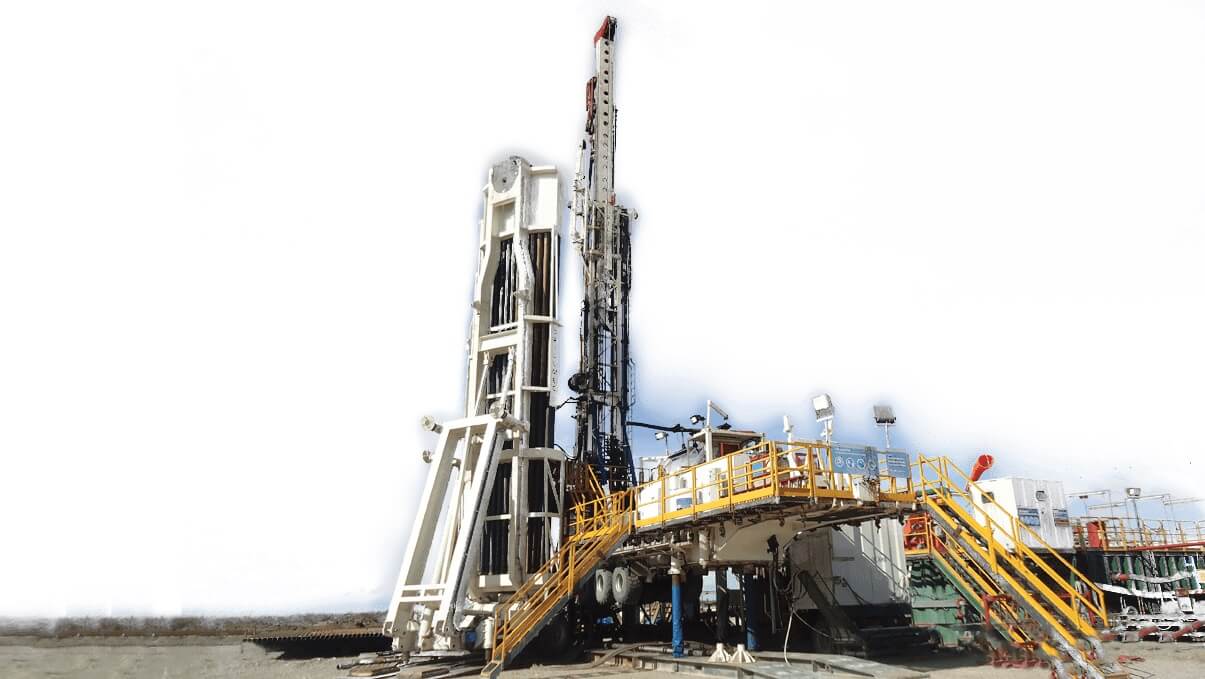

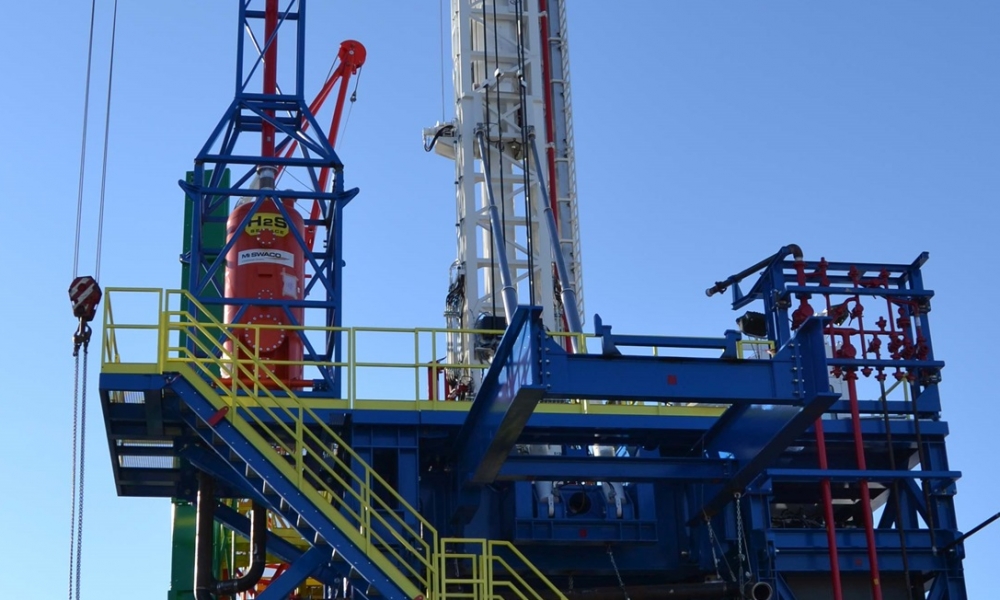

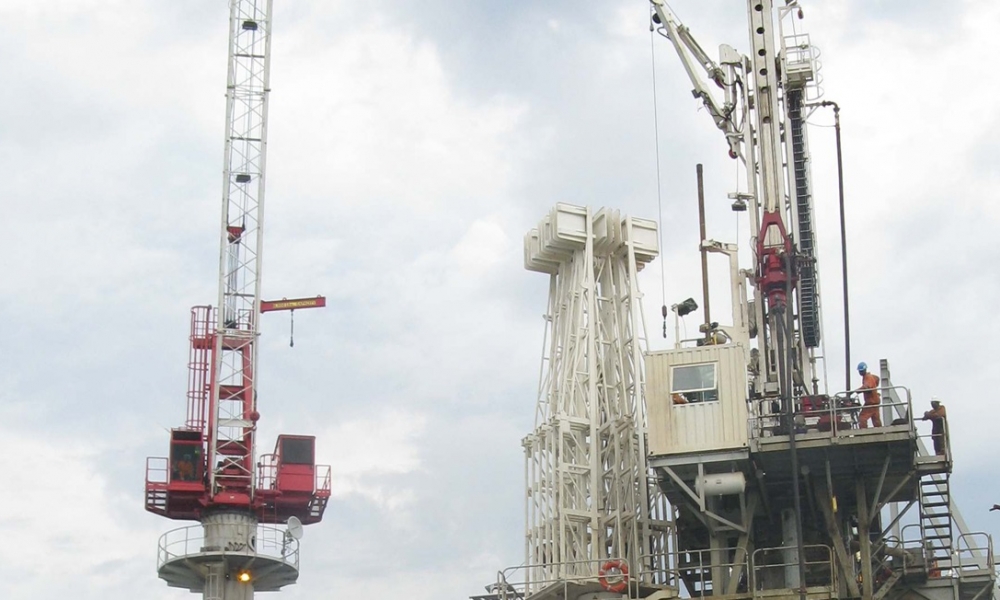

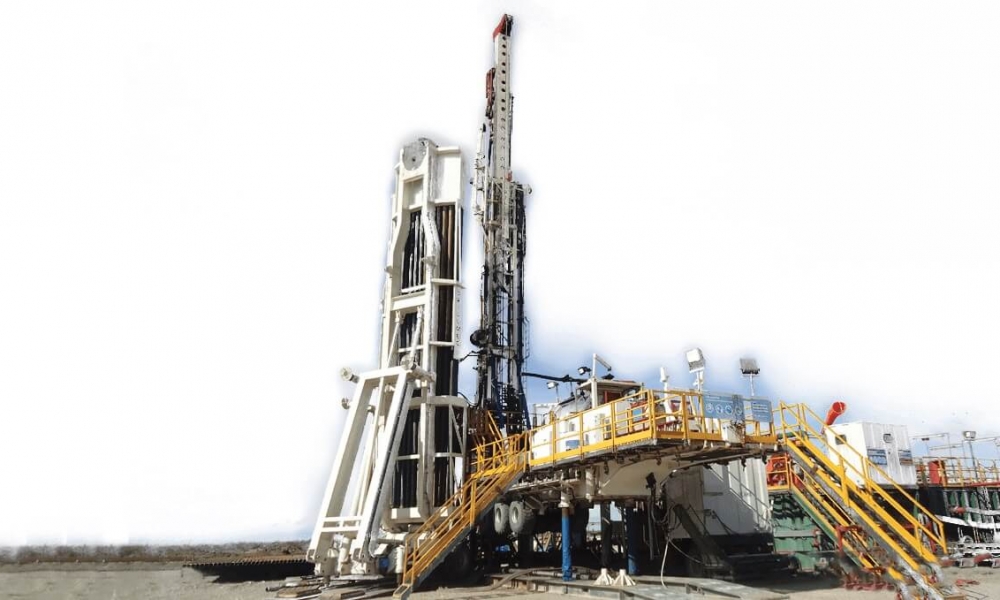

The HH Series drilling processes are largely automated and centrally operated from the driller’s cabin. Stuck pipe becomes less of an issue with features that allow automatic drilling even with preset WOBs and ROPs or top drive back reaming.


Today’s E&P companies demand rig manufacturers to design drilling equipment with an emphasis on safety and the environment while improving performance, reducing NPT and operational costs.

Drillmec brings it all together in one drilling rig – the HH Series. The evolution of the HH Series began with a simple hydraulic rig for water wells and advanced to one that meets and exceeds current oil well standards for automation, pipe handling, transportation and rig-up.

Since 1993, hundreds of Drillmec HH rigs have been deployed around the world working in extreme climates and in difficult well conditions. The advantages the HH series provides in terms of drilling efficiency, safety and sustainability make it suitable for 90 percent of onshore wells.

ADVANCED AUTOMATION
The HH Series are fully automatic rigs with a hydraulic hoist system that contributes to high performance and security. This rig design features various hydraulic equipment that is largely automated to support drilling processes and controlled from the drillers’ cabin. The integration of DEEP (Drillmec’s Embedded Efficiency Platform) brings to board the use of AI data-driven approach to drilling processes. This enables the use of pattern recognition to produce different operational efficiencies while optimizing drilling operations. The driller and crew enjoy safe and simplified drilling operations while on board.

REDUCED FOOTPRINT
The HH Series is designed with a clear goal of reducing carbon footprint in drilling and production processes. This hydraulic drilling machine features a powerful hydraulic cylinder which is the main hoisting element. It does not have a regular mast structure, drawworks, long wires and travelling equipment as with the conventional rigs. It has a compact design with a reduced height and dropped objects which creates a smaller carbon footprint. Additionally, it has a reduced rig lifecycle GHG emission of roughly 50%, 35% reduction in drilling activities and manufacturing process, and 50% from rig moves which is a big emission reduction when compared to rigs of that size and power.

ENHANCED PERFORMANCE
This hydraulic rig machine is a robust and powerful automated rig offering a high level of safety while delivering outstanding and superlative performance. The advanced automation allows for the central control of most routine drilling operations such as tripping in and out of drill strings with minimal manpower and less time. This ensures proper resource utilization while reducing non-productive time. This hydraulic rig delivers top drive torque range of 13,560 Nm (10,000 lbs/sq.ft.) to 52,230 Nm (38,522 lbs/sq.ft.) and speed of between 120 rpm to 200 rpm. It is available in ratings between 55metric tons (122,000 lbs) to 317 metric tons (700,00 lbs).

FAST MOVING
The HH Series rigs is designed to have a telescopic mast with a single powerful hydraulic system for a quick and fast erection. All the primary components of the rig are mounted on the wheels making it easier, faster and safer to transport between drill sites. It is also easier and safer to rig up and rig down reducing non-productive time.

參數

Metric

Input Power Pull Up Pull Down Rated Top Drive Torque Top Drive Speed Rotary Table Vertical Pipe Rack Capacity (DP 3 1/2″) Vertical Pipe Rack Capacity (DP 5″) Vertical Pipe Rack Capacity (DC)
kW m ton m ton m ton Nm rpm mm m m m
HH 55 328 55 10 55 13560 120 698 1025 730 110
HH 75 403 75 10 75 13560 120 698 1025 730 110
HH 102 429 100 20 100 32300 120 698 2900 1800 110
HH 150 720 150 20 136 32300 120  698 4600 3600 192
HH 220 1000 200 20 200 35840 158 698 4600 3600 192
HH 300 1150 272 30 272 49080 158 952.5 4624 3670 192
HH 350 1150 317 30 317 52230 200 952.5 4624 3670 192

USA

Input Power Pull Up Pull Down Rated Top Drive Torque Top Drive Speed Rotary Table Vertical Pipe Rack Capacity (DP 3 1/2″) Vertical Pipe Rack Capacity (DP 5″) Vertical Pipe Rack Capacity (DC)
hp lbs lbs lbs lbs*ft rpm in ft ft ft
HH 55 440 122000 22000 122000 10000 120 27.5 3360 2395 360
HH 75 540 165000 22000 165000 10000 120 27.5 3360 2395 360
HH 102 575 220000 44000 220000 23824 120  27.5 9500 5900 360
HH 150 965 330000 44000 300000 23824 120  27.5 15000 11800 630
HH 220 1542 440000 44000 440000 26435 158  27.5 15000 11800 630
HH 300 1542 600000 66000 600000 36200 158 37.5 15170 12040 630
HH 350 1542 700000 66000 700000 38522 200 37.5 15170 12040 630
