Drillmec Mud Pumps
/
/
/
/
Drillmec Mud Pumps

DRILLMEC offers a complete range of Triplex Mud Pumps from 600 hp to 2400 hp diesel or electric AC – DC powered both 5000 and 7500 psi rated.

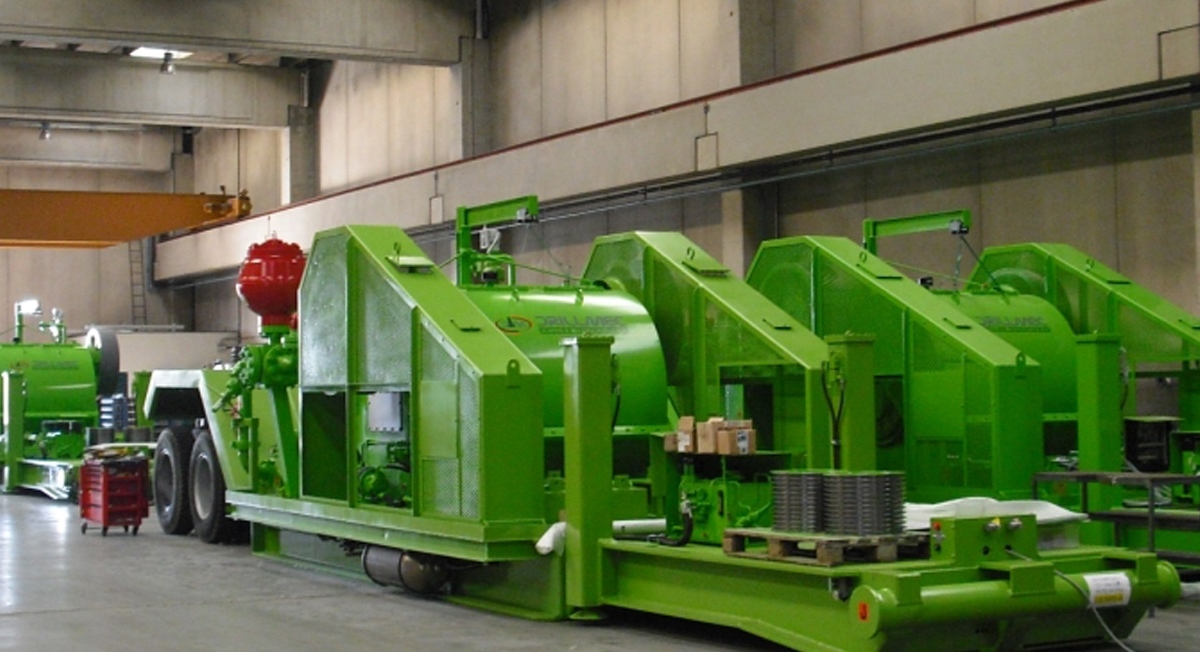

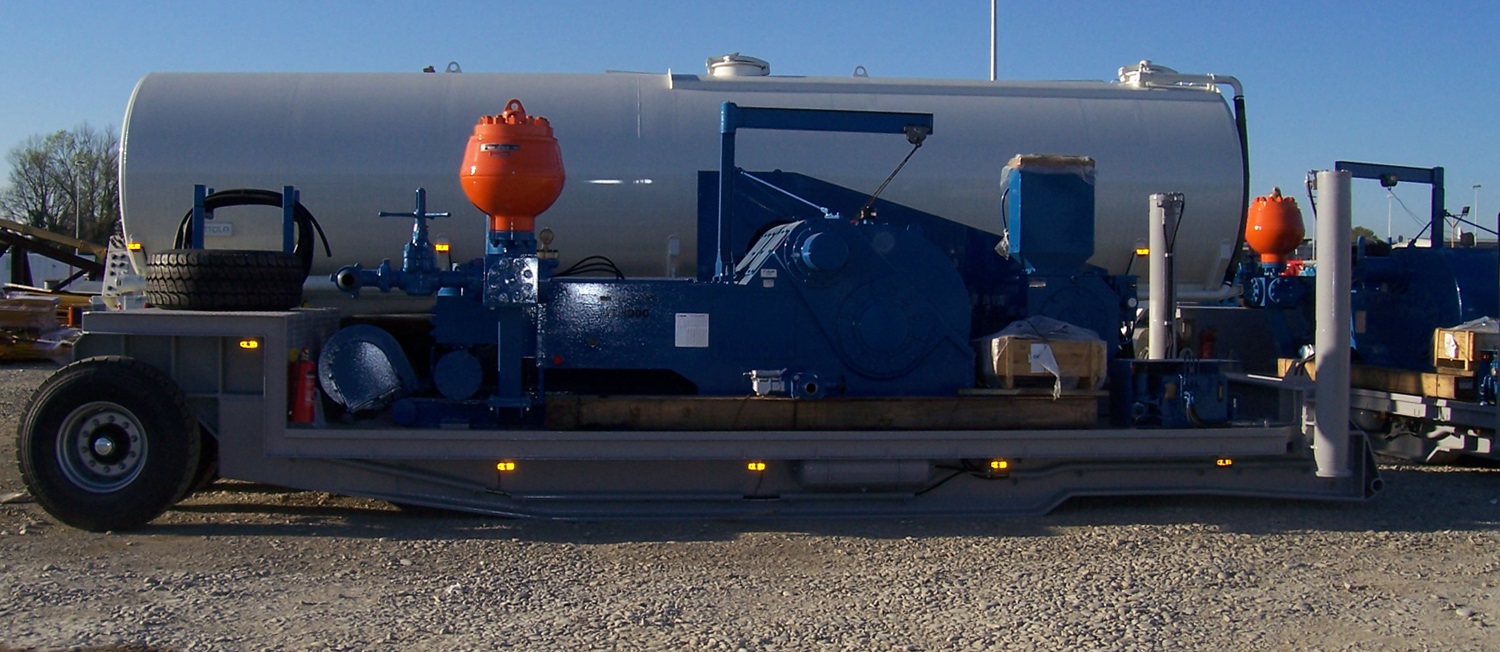

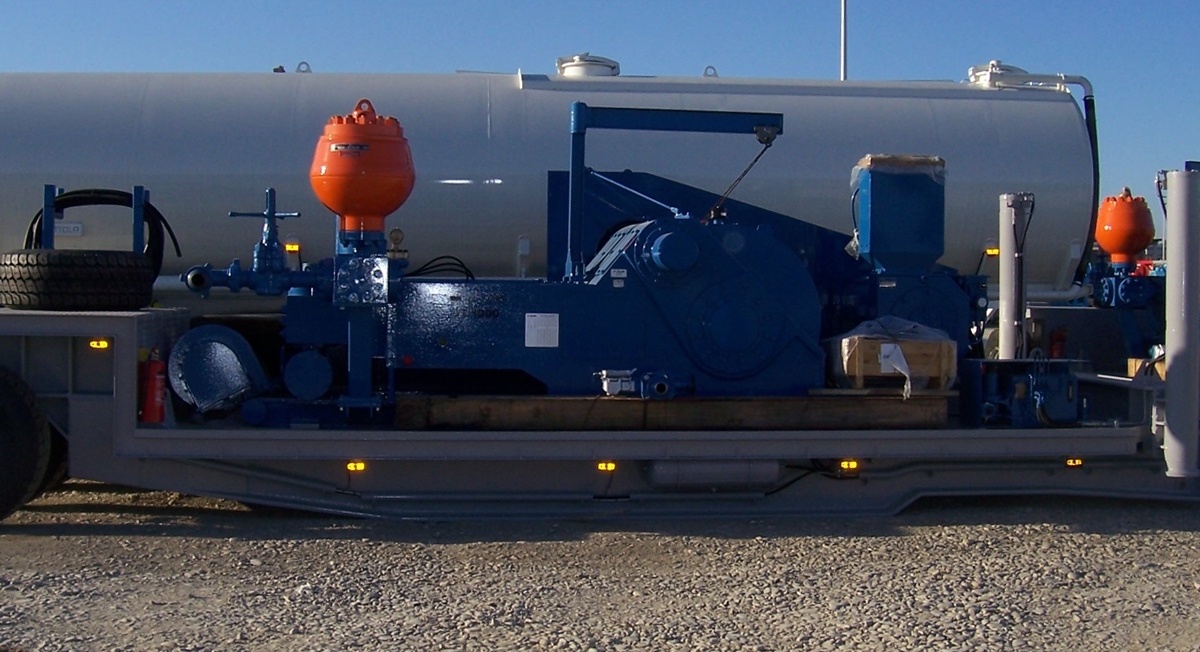

All the mud pumps can be mounted on an oilfield skid or trailerized in order to favour fast moves.

Category:

Drillmec designs and manufactures high-performance triplex mud pumps for onshore and offshore drilling applications to enhance drilling rates and reduce costs, remarkably minimizing the environmental impact.

Drillmec offers a complete range of triplex mud pumps from 600 hp to 2400 hp diesel or electric AC – DC powered both rated 5000 and 7500 psi.

Drillmec’s GD Series is the new generation of Gear Driven triplex mud pumps in the ranging from 1600 to 2400 hp.

Drillmec triplex mud pumps can be equipped with the P-Quip fast release system for valve cover, rod and liner. All the mud pumps can be mounted on a oilfield heavy duty skid or can be trailerized according to the client’s need.

MUD PUMPS CONFIGURATIONS AND DESIGNS

Mud pumps are akin to the heart, they are key equipment in oil and gas drilling that pumps and circulates the drilling mud. As a key player in the manufacture and sales of oilfield equipment, we have a complete range of triplex mud pumps with compact design, reduced carbon emission, and improved performance.
Our classes of onshore and offshore mud pumps range from 450 to 2,200 hp diesel or electric (AC or DC) powered with 3000 to 5000 psi ratings. We design our mud pumps to match different rig types, work optimally and safely both onshore and offshore.
Features Of the Belt and Chain Transmission Series

This series features robust pumps designed to deliver the highest HSE standards and performance.

• Linear Range of between 114 mm to 184 mm (4 ½ -9 ¼ inches).
• Stroke range of 305 mm (12 inches).
• Maximum pressure of 517 bar (7,500 PSI).
• Maximum volume delivery of 771 gpm (2,922 l/min).
• Ratings range of 1,194 kW (1,600 hp).
• A maximum speed of 120 spm

Features Of the Gear-Driven Series

This series features low noise and low vibrations, high reliability, and a massive 25% reduction in weight.

• Linear Range of between 114 mm to 229 mm (4-9 inches).
•Stroke range of between 178 mm to 355.5 mm (7 to 14 inches).
• Maximum pressure range of between 207 bar to 517 bar (3,000 to 7,500 PSI).
• Maximum volume delivery range of between 323 gpm to 1,272 gpm (1,226 to 4,815 l/min).
• Rating range of between 336 kW to 1,640 kW (450 to 2,200 hp).
• Maximum speed range of between 110 spm to 150 spm.

Configuration

Metric

Max Speed Liner Range Stroke Max Pressure Max Delivery Rating
rpm mm mm bar l/min kW
7T450 150 114-140 178 207 1226 336
7TS600 150 102-178 178 345 1986 447

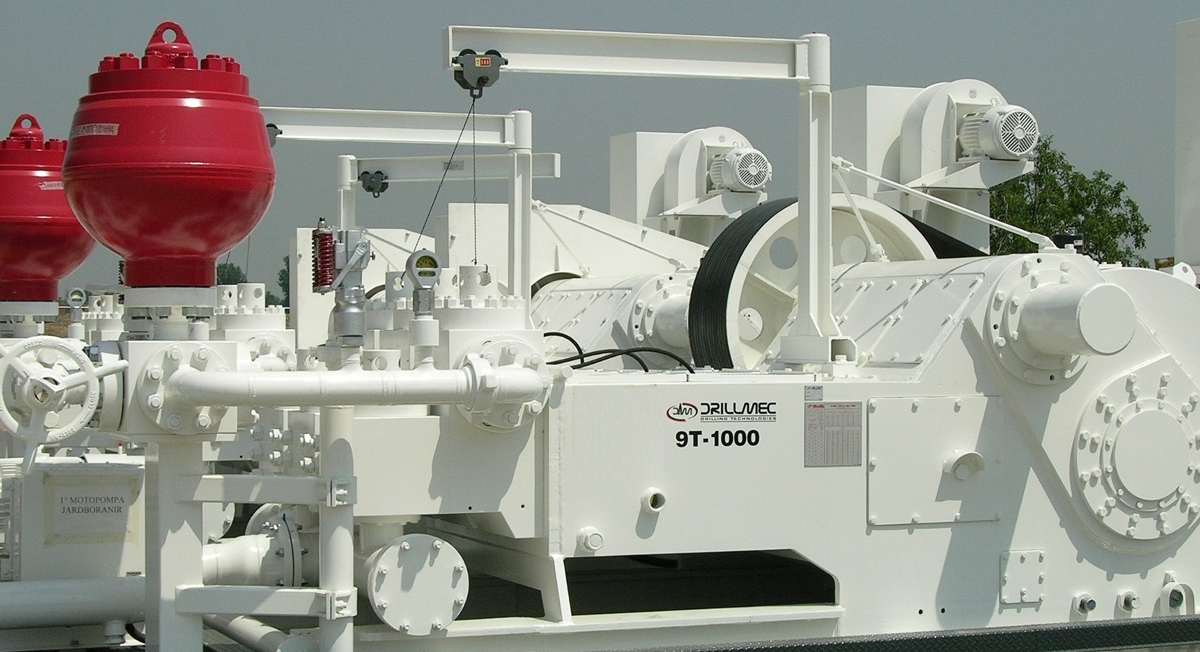

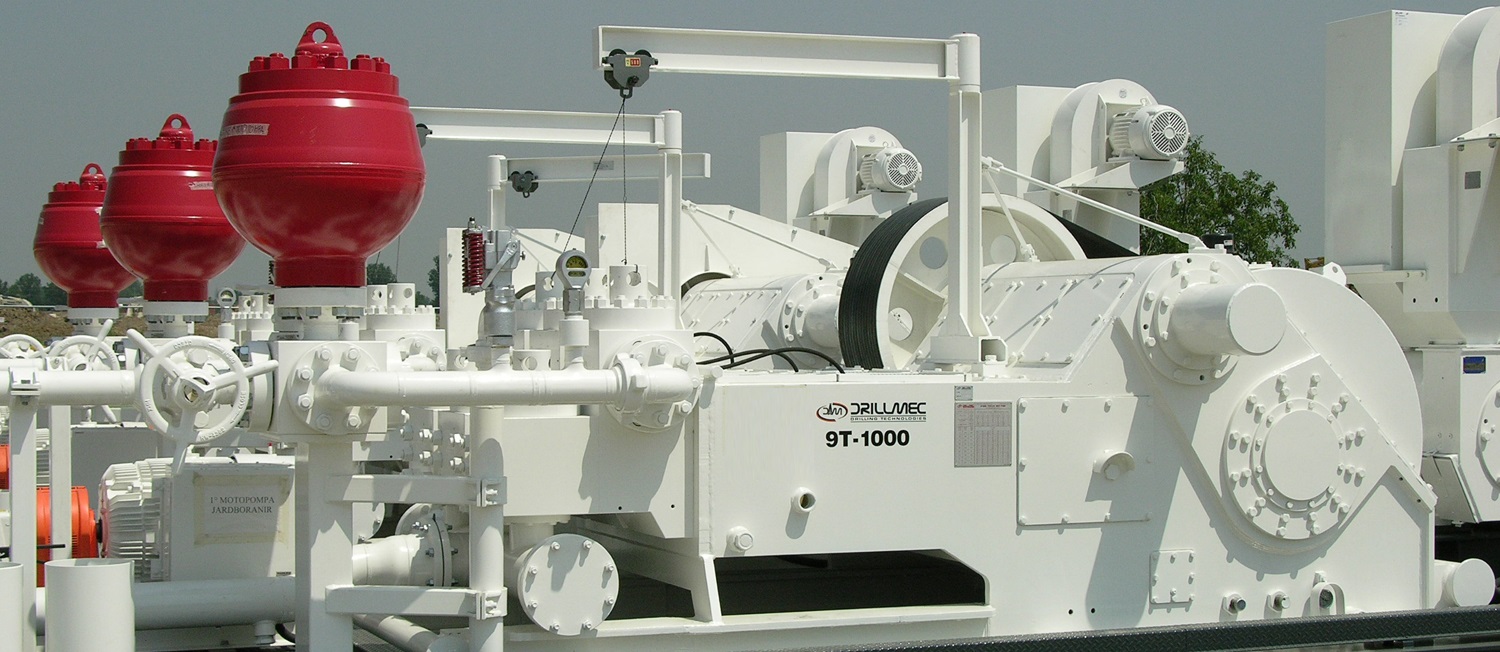

9T1000 150 114-178 228 345 2554 600
9T1300 114-178 228 345 2554 970

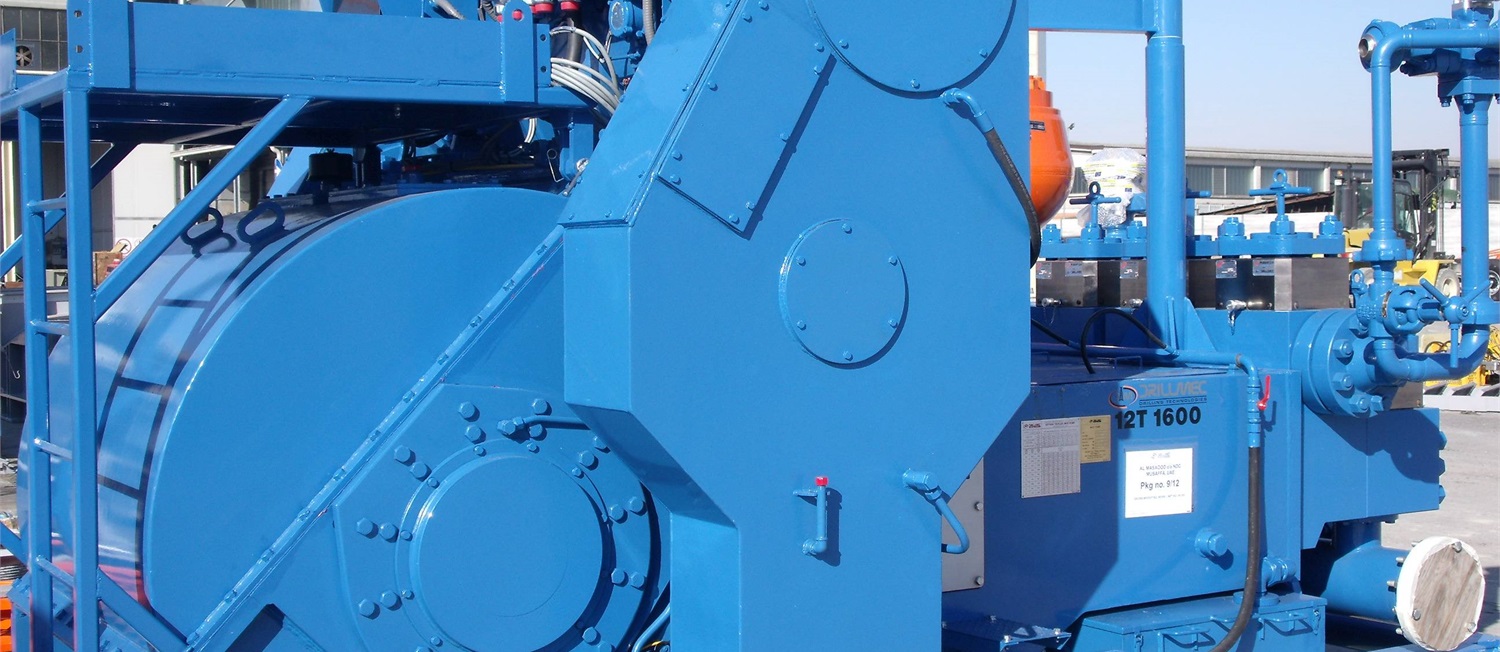

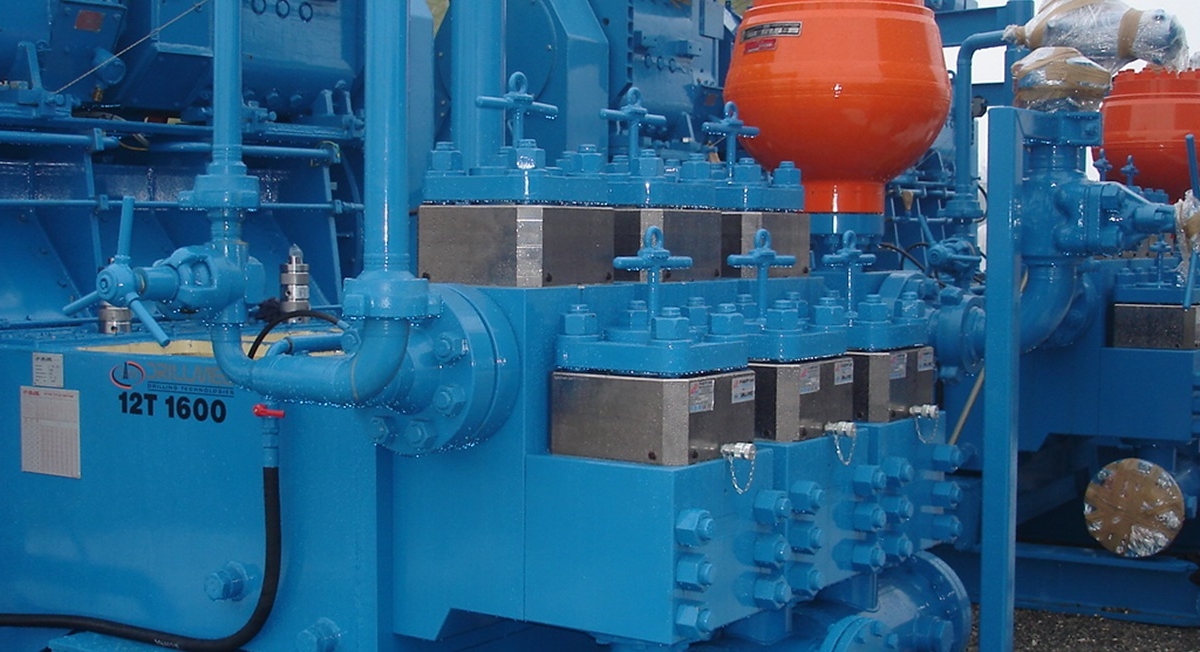

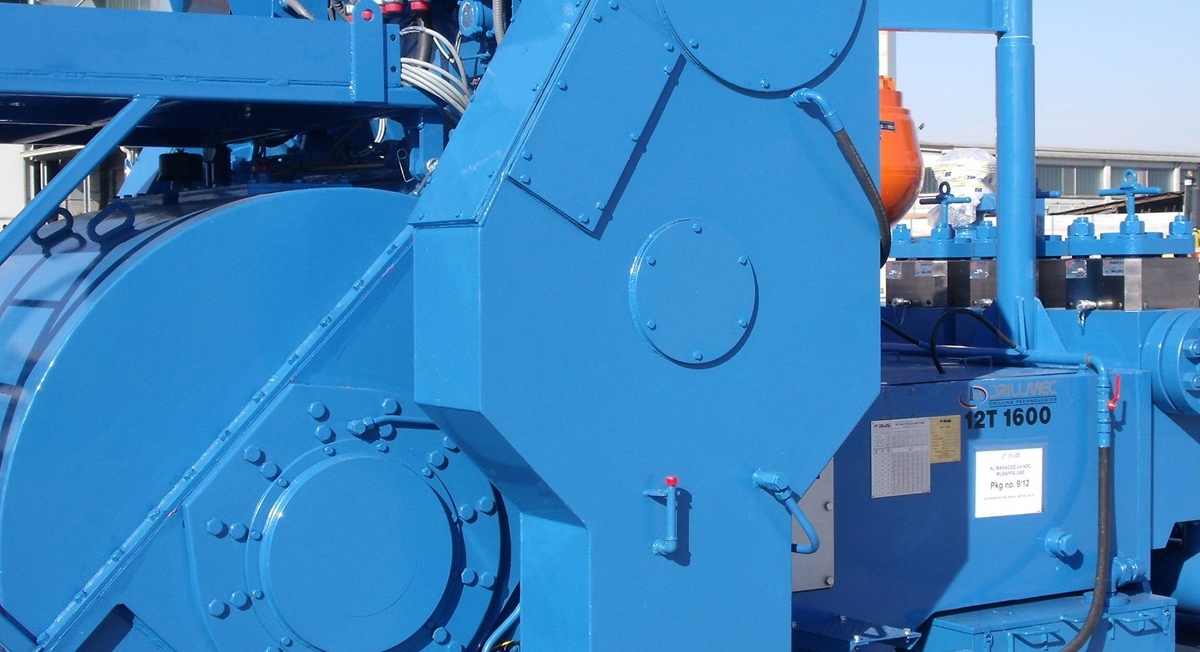

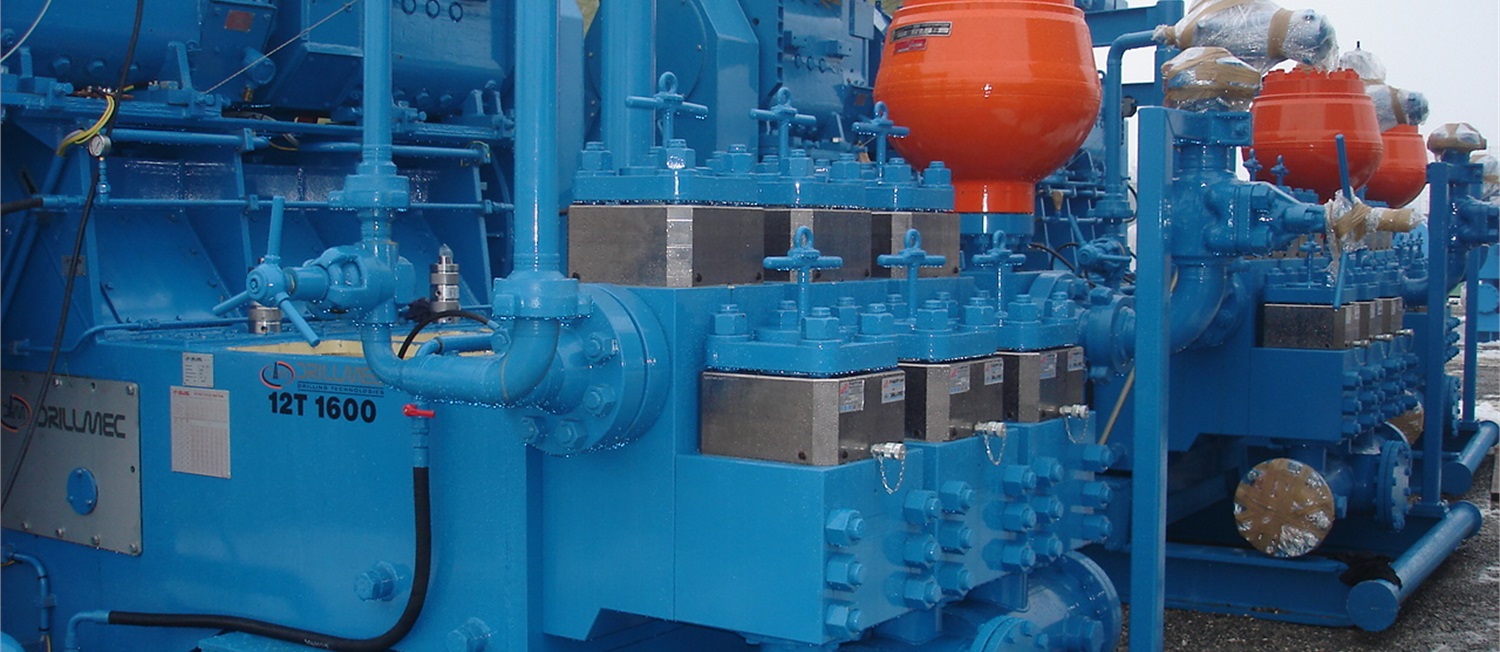

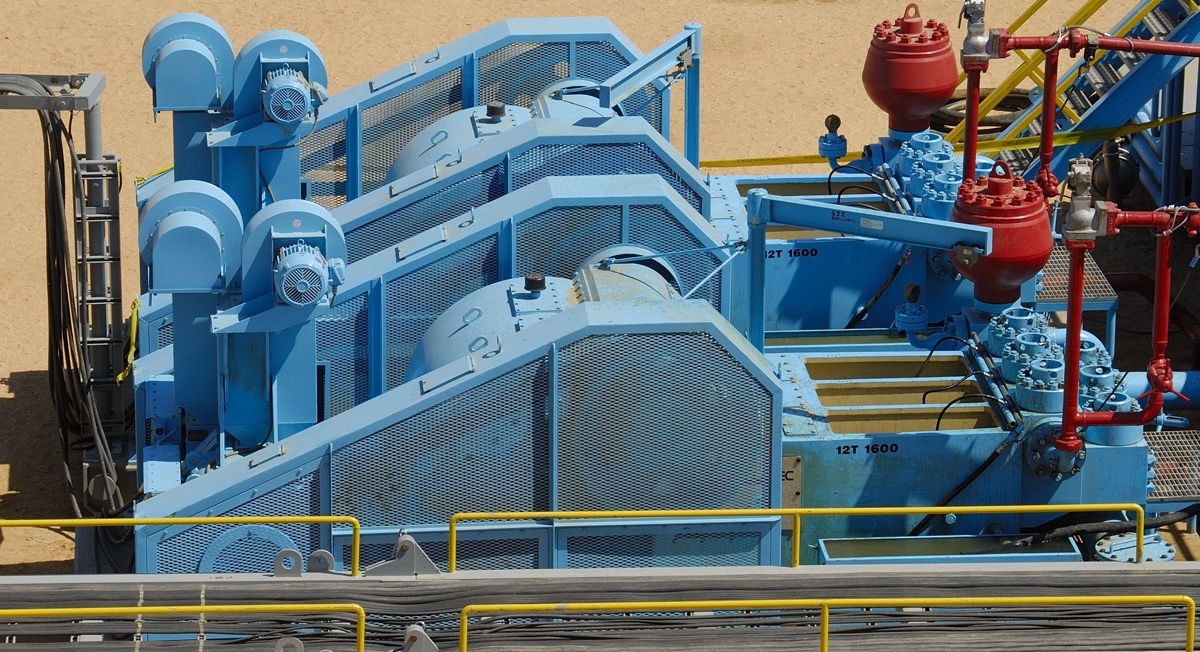

12T1600 120 114-184 305 345/517 2554/2922 1194

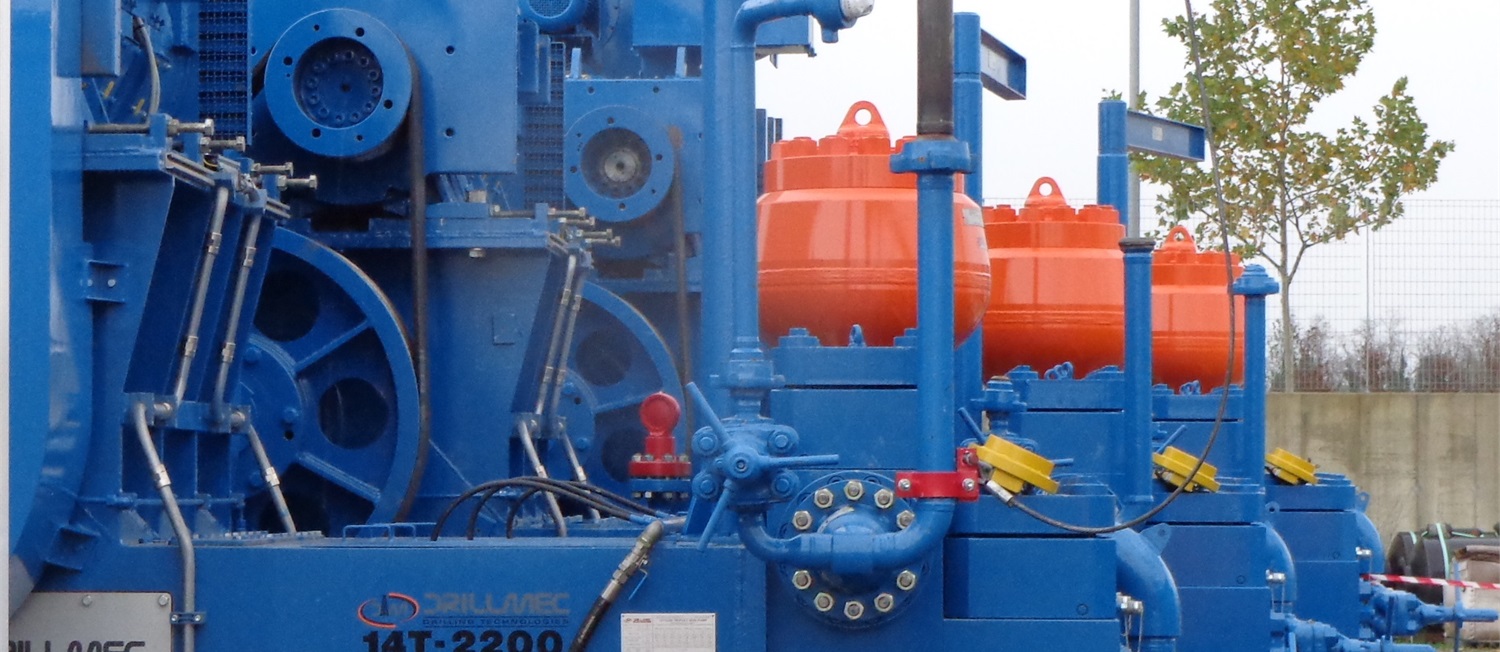

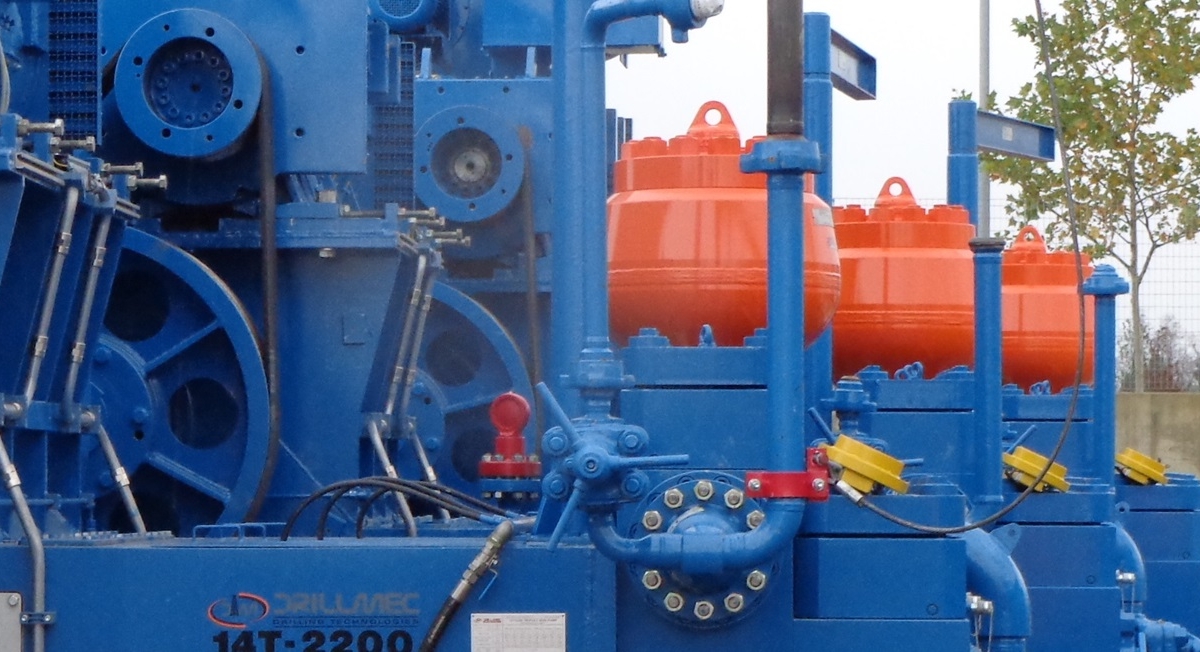

14T2200 110 127-229 355.5 517 4815 1640
12T1600GD 120 114-184 305 517 2922 1194

USA

Max Speed Liner Range Stroke Max Pressure Max Delivery Rating
rpm in in PSI gpm hp
7T450 150 4 1/2-5 1/2 7 3000 323 450
7TS600 150 4-7 7 5000 524 600
9T1000 150 4 1/2-7 9 5000 674 1000
9T1300 4 1/2-7 9 5000 674 1370
12T1600 120 4 1/2-7 1/4 12 5000/7500 674/771 1600
14T2200 110 5-9 14 7500 1272 2200
12T1600GD 120 4 1/2-7 1/4 12 7500 771 1600
