Manufacturer：Reduct
Description：
Mapping Process

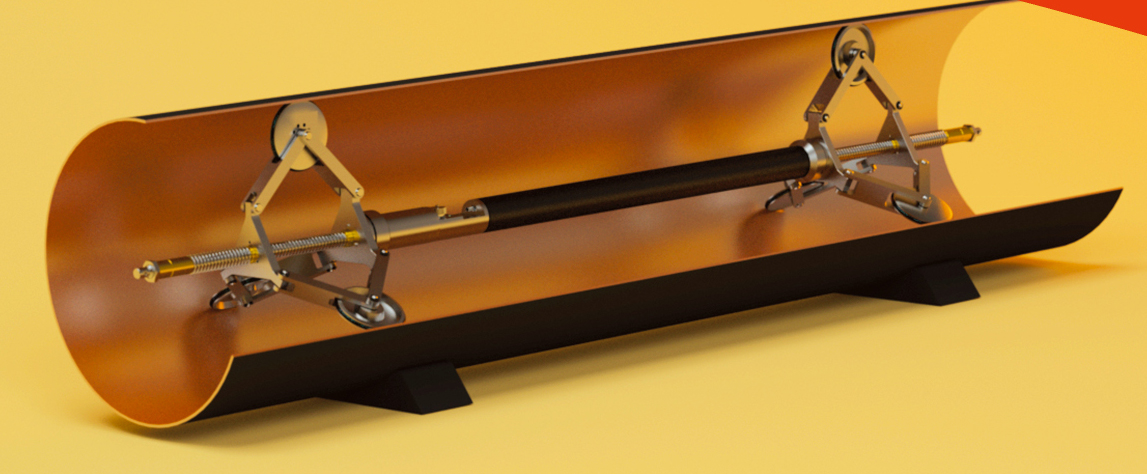

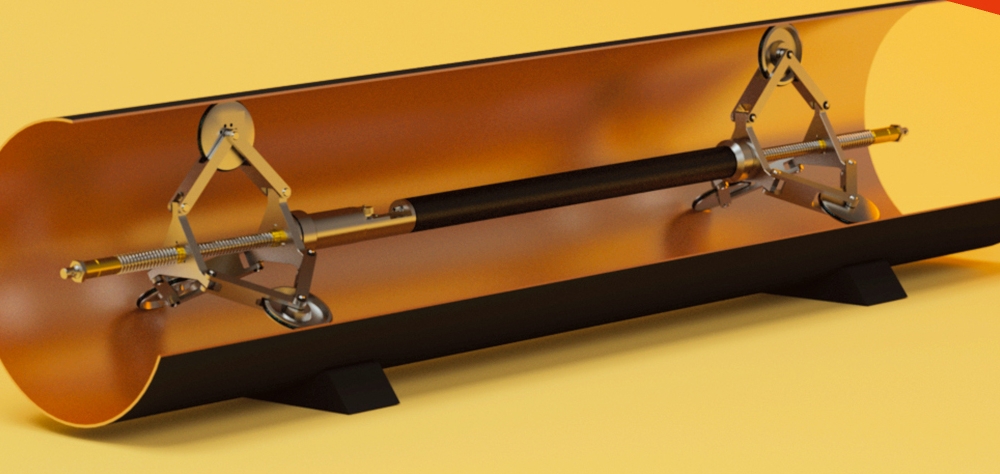

Reduct’s Pipeline Mapping Systems not only produce accurate XYZ information of your utility pipe, but the operational features have been designed to eliminate most human interference to reduce the risk of data conversion errors. In a typical situation, the entire process of starting the measurement to viewing the output data in your GIS platform is less than one hour.
技術參數
| Articulated Micro Range Series | Pipe type | ID(mm) | ||
| DR2.0/50 | HDPE DN50 SDR11 | 40.8mm | ||
| DR2.5/63 | HDPE DN63 SDR11 | 50.0mm | ||
| DR3.0/75 | HDPE DN73 SDR11 | 61.4mm | ||
| DR3.5/90 | HDPE DN90 SDR11 | 80-90mm | ||
| Hdd Variable Diameter Range | ||||
| DR-Hdd-4.2 OMU+Accessories | ||||
| DR-Hdd-4.2S OMU+Accessories | ||||
| DR4.2 Centralisers(min.one required) | ||||
| WUS-0320+Flight Case | any | 90-500mm | ||
| WUS-2054+Flight Case | any | 500-1350mm | ||
| WUS-0308 | any | 90-200mm | ||
| WUS-0820 | any | 200-500mm | ||
| WUS-2036 | any | 500-900mm | ||
| WUS-3654 | any | 900-1350mm | ||
| HdyroRunner Series | ||||
| D6/150 | Steel/HDPE | 150mm | ||
| D8/200 | Steel/HDPE | 200mm | ||
| Special Units | ||||
| D4.0 | Steel/HDPE | 100mm | ||
| D12/150 | Steel/HDPE | 300mm | ||
| Electrical High Speed Winches | ||||
| 400s(110v or 220v) | ||||
| 560s(110v or 220v) | ||||
| Accessories | ||||
| X-bend-Bend Radius Calculation Software | ||||
| Battery Pack(3 batteries+2chargers)(not for DR3.5/90) | ||||
| Battery Charger | ||||
| Control Unit | ||||
