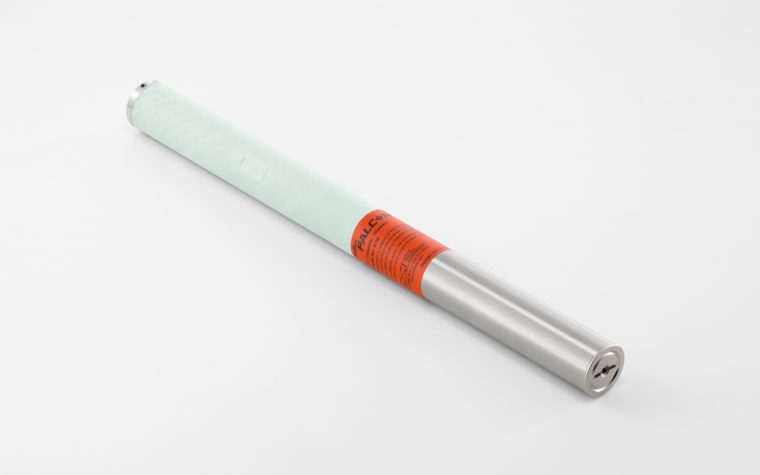

| DFT: Dual Frequency (1.5 / 33 kHz) For use with the Mark V System | ||||
 |
||||
| Length x Diameter | Depth Range | Battery Type | Temp. Rating | Weight |
| 15 in. x 1.25 in. 38 cm x 3.18 cm |
40 ft 12.2 m |
2 C-cell alkaline 20 hours awake 200 hours sleep |
220°F 104°C |
1.4 lb 635 g |
| DS: Short Range (Blue) Mark III/IV compatible | ||||
 |
||||
| Length x Diameter | Depth Range | Battery Type | Temp. Rating | Weight |
| 8 in. x 1.00 in. 20 cm x 2.5 cm |
15 ft 4.6 m |
1AA-cell alkaline 12 hours awake 50 hours sleep |
180°F 82°C |
8.4 oz 240 g |
| DT: Standard Range (Yellow) Mark III/IV/V compatible | ||||
 |
||||
| Length x Diameter | Depth Range | Battery Type | Temp. Rating | Weight |
| 15 in. x 1.25 in. 38 cm x 3.18 cm |
40 ft 12.2 m |
2 C-cell alkaline 30 hours awake 200 hours sleep |
220°F 104°C |
1.4 lb 635 g |
| DX: Long Range (Red) Mark III/IV/V compatible | ||||
 |
||||
| Length x Diameter | Depth Range | Battery Type | Temp. Rating | Weight |
| 15 in. x 1.25 in. 38 cm x 3.18 cm |
70 ft 21.3 m |
2 C-cell alkaline 20 hours awake 200 hours sleep |
220°F 104°C |
1.4 lb 635 g |
| D4X: DX with Extended Life (Red) Mark III/IV/V compatible | ||||
 |
||||
| Length x Diameter | Depth Range | Battery Type | Temp. Rating | Weight |
| 19 in. x 1.25 in. 48 cm x 3.18 cm |
70 ft 21.3 m |
4 C-cell alkaline 40 hours awake 400 hours sleep |
220°F 104°C |
1.85 lb 840 g |
| DXP: Long Range with 0.1% Pitch (Magenta) Mark III/IV/V compatible Pitch range -10% to 10%. For level drilling use only |
||||
 |
||||
| Length x Diameter | Depth Range | Battery Type | Temp. Rating | Weight |
| 15 in. x 1.25 in. 38 cm x 3.18 cm |
70 ft 21.3 m |
2 C-cell alkaline 20 hours awake 200 hours sleep |
220°F 104°C |
1.4 lb 635 g |
| D4XP: D4X with 0.1% Pitch (Magenta) Mark III/IV/V compatible Pitch range -10% to 10%. For level drilling use only |
||||
 |
||||
| Length x Diameter | Depth Range | Battery Type | Temp. Rating | Weight |
| 19 in. x 1.25 in. 48 cm x 3.18 cm |
70 ft 21.3 m |
4 C-cell alkaline 40 hours awake 400 hours sleep |
220°F 104°C |
1.85 lb 840 g |
| DCX: Cable Transmitter (Green) Mark III/IV/V compatible | ||||
 |
||||
| Length x Diameter | Depth Range | Battery Type | Temp. Rating | Weight |
| 15 in. x 1.25 in. 38 cm x 3.18 cm |
15 in. x 1.25 in. 38 cm x 3.18 cm |
12V to 28V DC cable power |
180°F 82°C |
1.2 lb 545 g |
| DCP: DCX with 0.1% Pitch (Magenta) Mark III/IV/V compatible | ||||
 |
||||
| Length x Diameter | Depth Range | Battery Type | Temp. Rating | Weight |
| 15 in. x 1.25 in. 38 cm x 3.18 cm |
15 in. x 1.25 in. 38 cm x 3.18 cm |
12V to 28V DC cable power |
180°F 82°C |
1.2 lb 545 g |
DucTrak™ Series Transmitters
DucTrak™ is designed to track existing non-metal duct to depths greater than 100 feet. It does not send out a roll / pitch signal and is not intended for horizontal directional drilling operations. The DDT/DDTS models are designed for use with the Mark series locators
| DDT DucTrak™ Extended Range Transmitter – Mark III/IV/V compatible | ||||
 |
||||
| Length x Diameter | Depth Range | Battery Type | Temp. Rating | Weight |
| 12 in. x 0.875 in. 30.5 cm x 2.2 cm |
100 ft 30.5 m |
Type DL 123 3V lithium 8–12 hour life (approx.) |
22°F to 122°F -5.6°C to 50°C |
8.4 oz 240 g |
| DDTS DucTrak™ Transmitter – Mark III/IV/V compatible | ||||
 |
||||
| Length x Diameter | Depth Range | Battery Type | Temp. Rating | Weight |
| 6 in. x 0.875 in. 15.2 cm x 2.2 cm |
50 ft 15.2 m |
Type DL 123 3V lithium 8–12 hour life (approx.) |
22°F to 122°F -5.6°C to 50°C |
4.5 oz 127 g |
