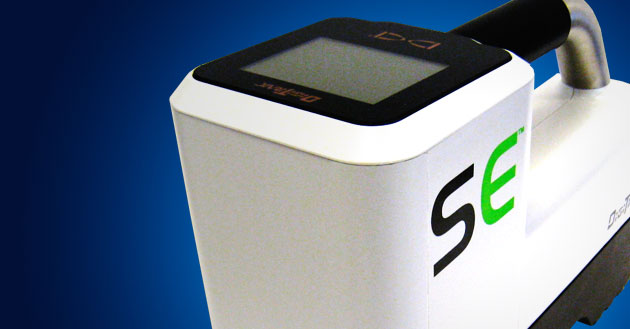

Named after the late Steve Edwards, DCI is proud to offer the DigiTrak® SE™, designed for compatibility with any existing Mark Series remote display and streamlined to feature select technology from both the F2® and Eclipse® locating systems. Easy to use target-in-the box® locating and outstandi
Enquiry about DCI SE
- Target-in-the-box® locating.
- Left/right remote steering.
- Roll offset.
- Picture-driven menu.
- Latest 3-D antenna technology.
- Compatible with 12-kHz DucTrak™ transmitters.
Specifications
SE™ Specifications |
||
| Part Number | SER | |
| Frequency | 12 kHz | |
| Power Source | NiMH battery pack | |
| Battery Life | 5—7 hrs (approx.) | |
| Battery Charger | 100/240 V AC, 50/60 Hz | |
| Functions | Menu Driven | |
| Controls | Trigger Switch | |
| Graphic Display | LCD | |
| Audio Output | Beeper | |
| Depth Range – ST | 50 ft (15.2m) | |
| Telemetry Range | 1000 ft (305 m) | |
| Telemetry Channels | 4 channels | |
| Operating Temperature Range | 14°F to 149°F (-10°C to 65°C) | |
| Accuracy | ± 5% absolute | |
Dimensions |
||
| Height | 11 in. (27.94 cm) | |
| Width | 5.5 in. (13.97 cm) | |
| Length | 15 in. (38.1 cm) | |
| Weight (with battery) | 7.7 lb (3.49 kg) | |
Fittings
SE™ Compatible Remote Displays
F Series™ Display
The F Series™ Display (FSD™) lets you see drilling information at the drill and can receive telemetry signals from the SE™, F5®, F2®, Eclipse®, Mark III, and Mark V locating systems. The FSD™ remote display is equipped with externally mounted antenna. Additional antenna options available upon request for increased telemetry range.
SE™ Transmitters
DCI offers several different transmitters for use with the SE™ system. Go to the transmitters page for more information.
The SE™ Locating System is compatible with DCI’s DucTrak™ transmitters, which are used for tracking existing non-metallic ducts.
SE™ Battery Charger
The DCI NiMH battery charger system will power the SE™ receiver for 6 hours before recharging is necessary.
