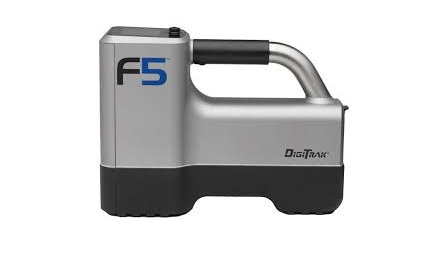

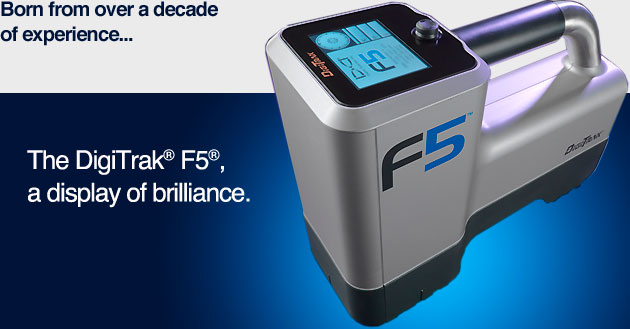

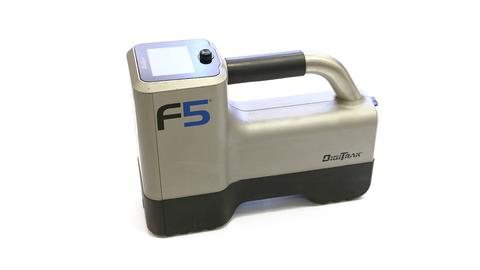

The latest addition to the DigiTrak® family, the DigiTrak® F5® locator offers all of the features of the Eclipse® locator but with enhanced ease of use, style, and versatility to overcome jobsite interference with 5 transmitter frequency options.
Enquiry about DCI F5
- Five frequency options for maximum interference reduction.
- Intuitive graphical user interface with full-color display.
- Dual-frequency transmitters allow in-ground frequency change.
- DataLog® LWD™ (Log-While-Drilling) option with Bluetooth technology.
- Patented 3D antenna technology.
- Target-in-the-box® locating.
- Compatible with SST® steering tool and TensiTrak® monitoring system.
- 24 clock positions.
- 4-way toggle switch for simple operations.
- Compatible with all F Series™ transmitters.
- Allows driller to view (scroll through) all data logged by the F5® receiver, not just the real-time data.
- F5® receiver is compatible with the FSD™ (F Series™ Display) remote and the DigiTrak® Multi-Function Display (MFD®).
Specifications
| Part Number | F5R |
| Frequencies | 1.3, 8.4, 12, 18.5, 19.2kHz |
| Power Source | DigiTrak® Lithium-ion battery pack |
| Battery Life | 8 – 12 hrs (approx.) |
| Battery Charger | 12 V DC or 110/240 V AC |
| Functions | Menu Driven |
| Controls | Trigger and toggle switches |
| Graphic Display | Full-color LCD |
| Audio Output | Beeper |
| Depth Range | Up to 85 ft (25.9 meters) |
| Telemetry Range | 1800 ft (550 m) |
| Telemetry channels | 4 channels |
| Compatibility | Reads F5®, F Series™, DuckTrak™, TensiTrak®, and SST®transmitters |
| Operating temperature range | -4° F to 140° F (-20° C to 60° C) |
| Accuracy | ± 5% absolute |
Dimensions
| Height | 11 in. (27.94 cm) |
| Width | 5.5 in. (13.97 cm) |
| Length | 15 in. (38.1 cm) |
| Weight (with battery) | 8 lb (3.63 kg) |
Fittings
 |
F Series™ DisplayThe F Series™ Display (FSD™) lets you see drilling information at the drill and can receive telemetry signals from the F5®, F2®, SE™, Eclipse®, Mark III, and Mark V locating systems. The FSD™ remote display is equipped with externally mounted antenna. Additional antenna options available upon request for increased telemetry range. |
 |
F5® TransmittersDCI offers several different transmitters for use with the F5®system. Go to the transmitters page for more information. The F5® Locating System is compatible with DCI’s DucTrak™ transmitters, which are used for tracking existing non-metallic ducts. |
 |
F Series™ Lithium-ion Battery ChargerDigiTrak® F Series™ lithium-ion battery charger and lithium-ion battery packs have LEDs to provide quick status checks. |
 |
MFCB — Multi-Function Cable BoxThe DigiTrak® Multi-Function Cable Box (MFCB) is required when using an SST® transmitter or an F Series™ or Eclipse® cable transmitter. The MFCB provides power to the cable transmitter and the remote display, and it sends |
Documentations
F5® Operator’s Manual |
||
 |
English | Brazilian Portuguese |
| French | German | |
| Spanish | Russian | |
| Romanian | Hindi | |
| Danish | Polish | |
| Italian | Dutch | |
| Turkish | Chinese – Simplified | |
F5® Quick Start Guide
|
English | Chinese – Simplified |
| Russian | Hindi | |
DataLog® Log-While-Drilling (LWD™) Operator’s Manual |
||
|
English | Russian |
| Hindi | German | |
| Chinese | French | |
Log-While-Drilling (LWD™) Quick Start Guide |
||
|
English | Russian |
| Hindi | ||
DataLog® Quick Start Guide |
||
 |
English | Russian |
| Hindi | ||
MFD®/FSD™ Operator’s Manual |
||
 |
English | German |
| Russian | Hindi | |
| Chinese – Simplified | Danish | |
| French | ||
