DR-2 Pipeline Mapping System
DR-2 Pipeline Mapping System

This unique DR-2 is the world’s smallest fiber optical gyroscope (FOG) based mapping probe. The DR-2 has been designed to map small diameter duct like infrastructure such as telecom ducts, pressure sewers and house connections.

Model Number: OMU DR-2

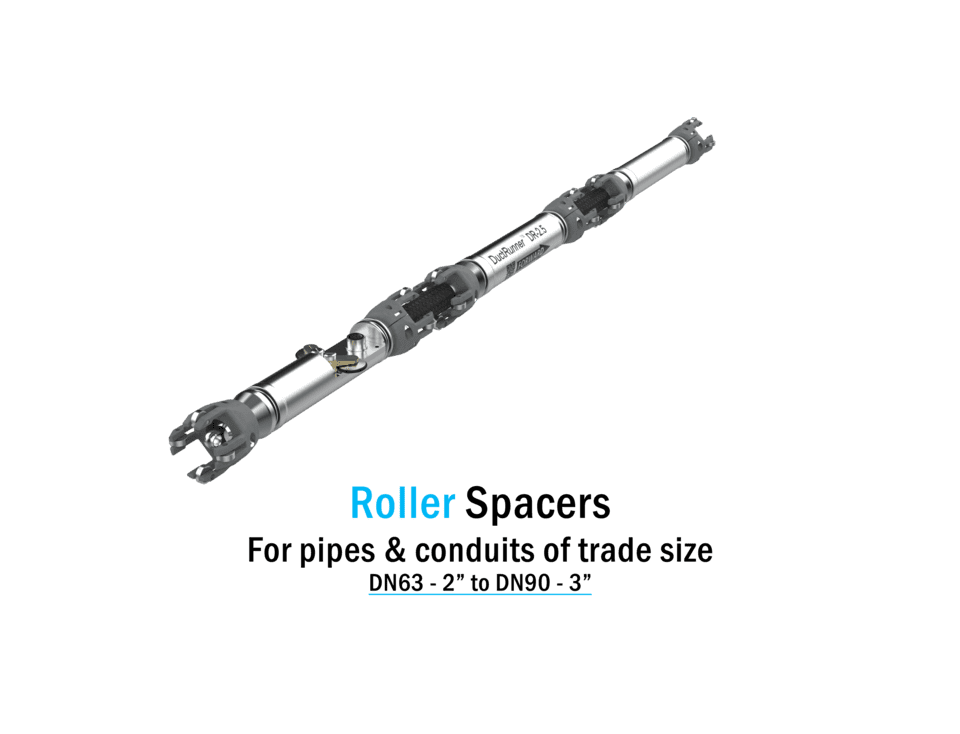

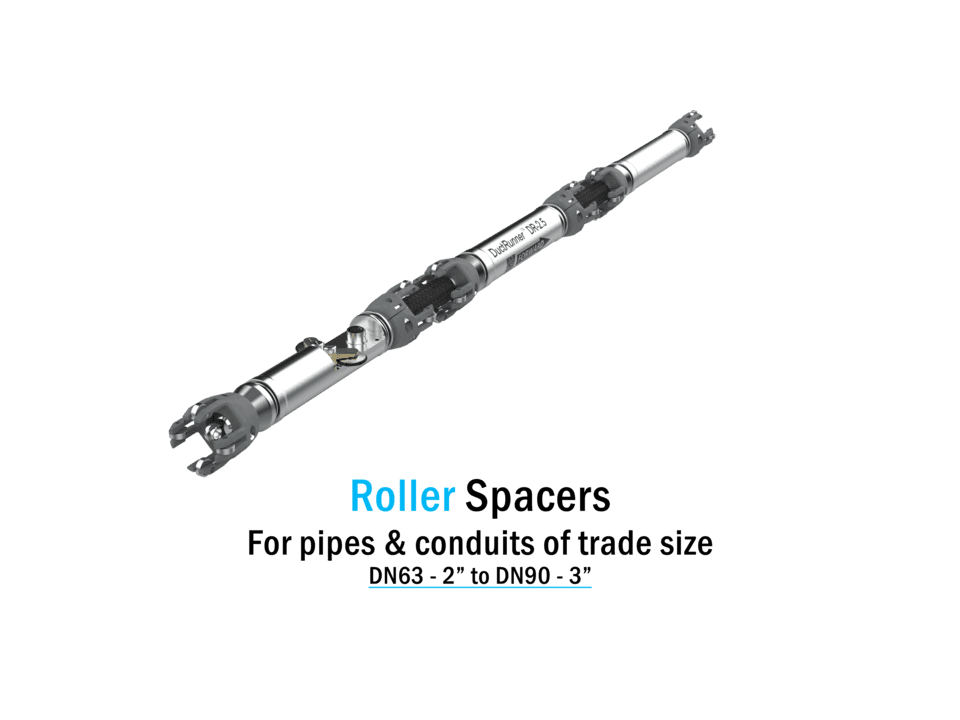

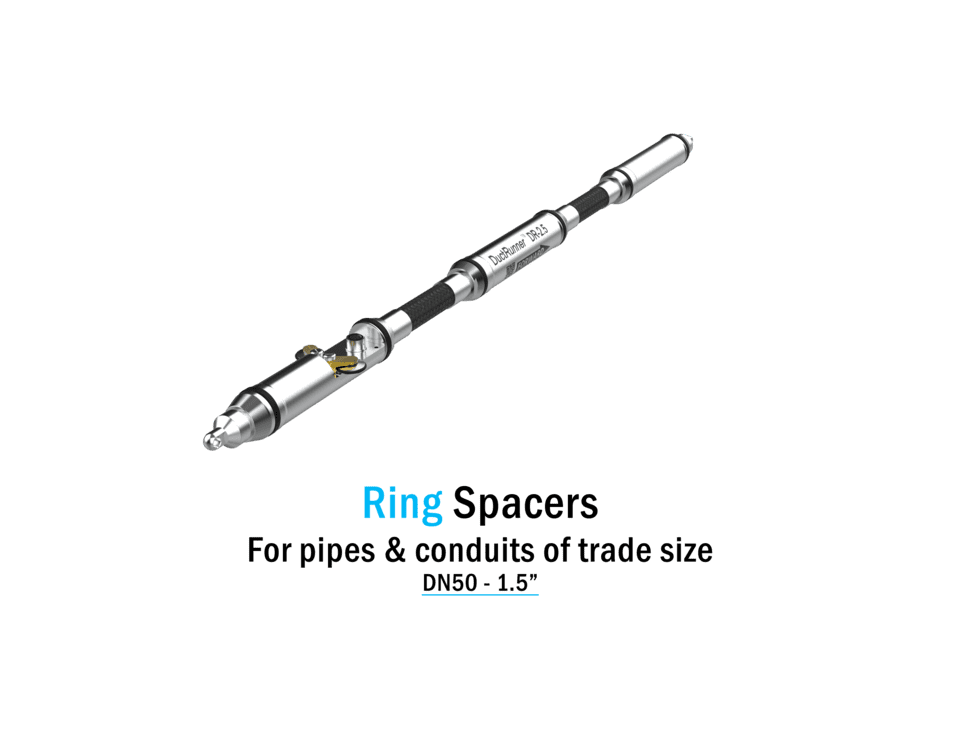

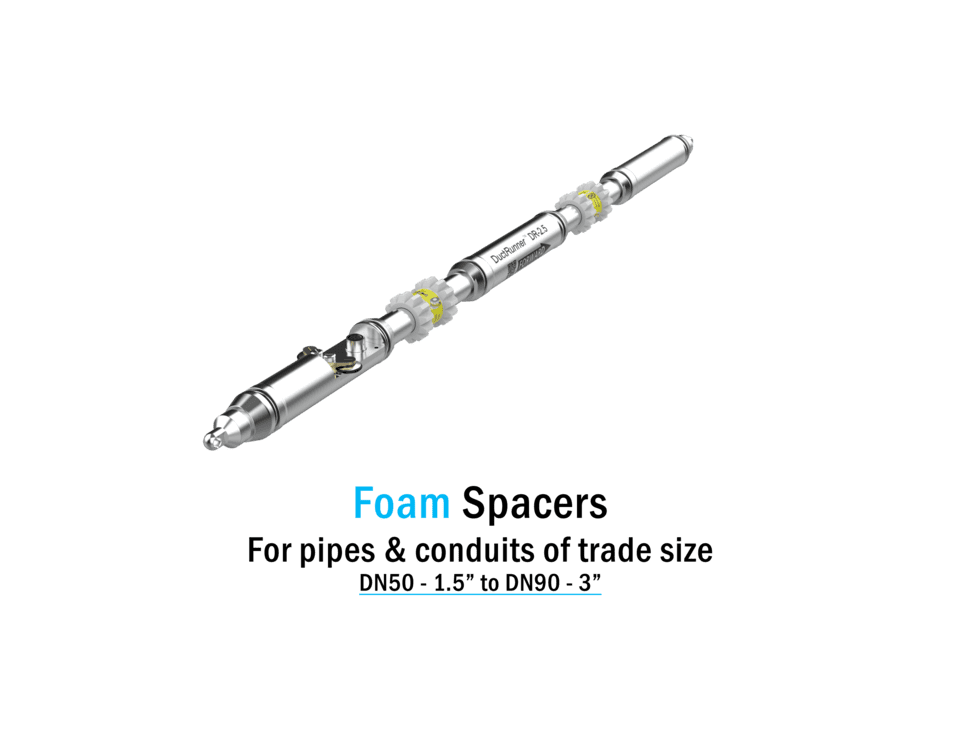

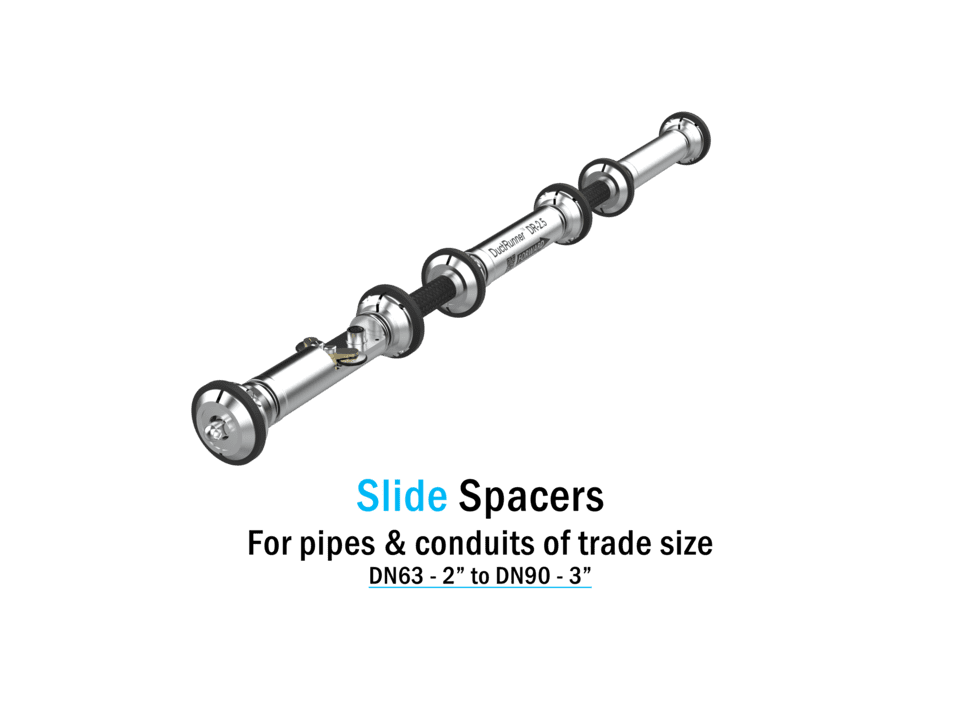

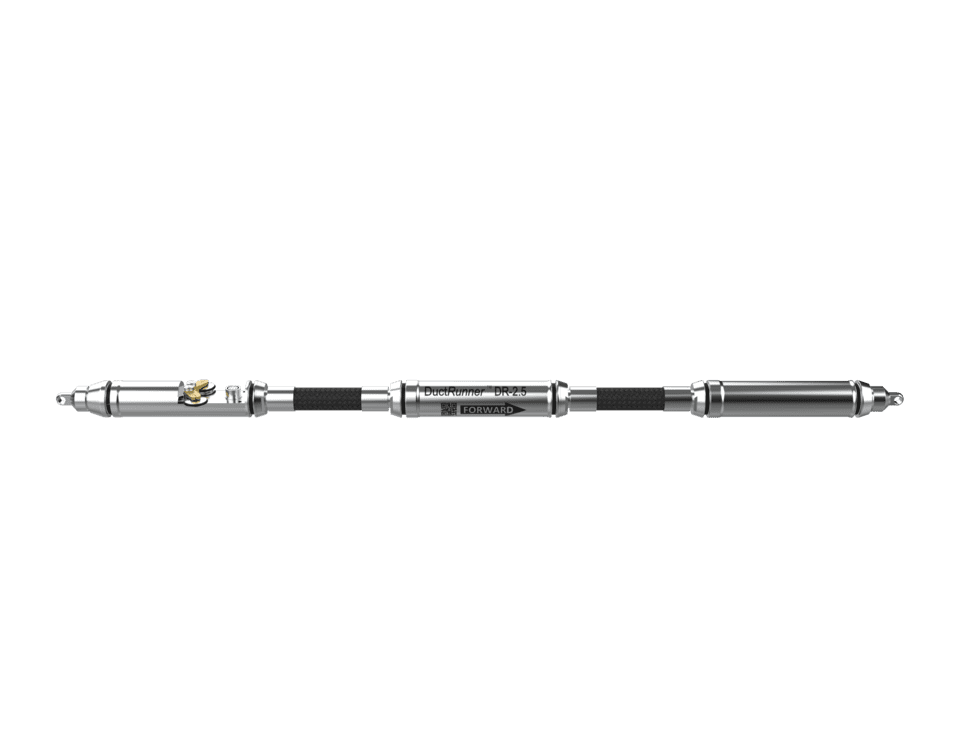

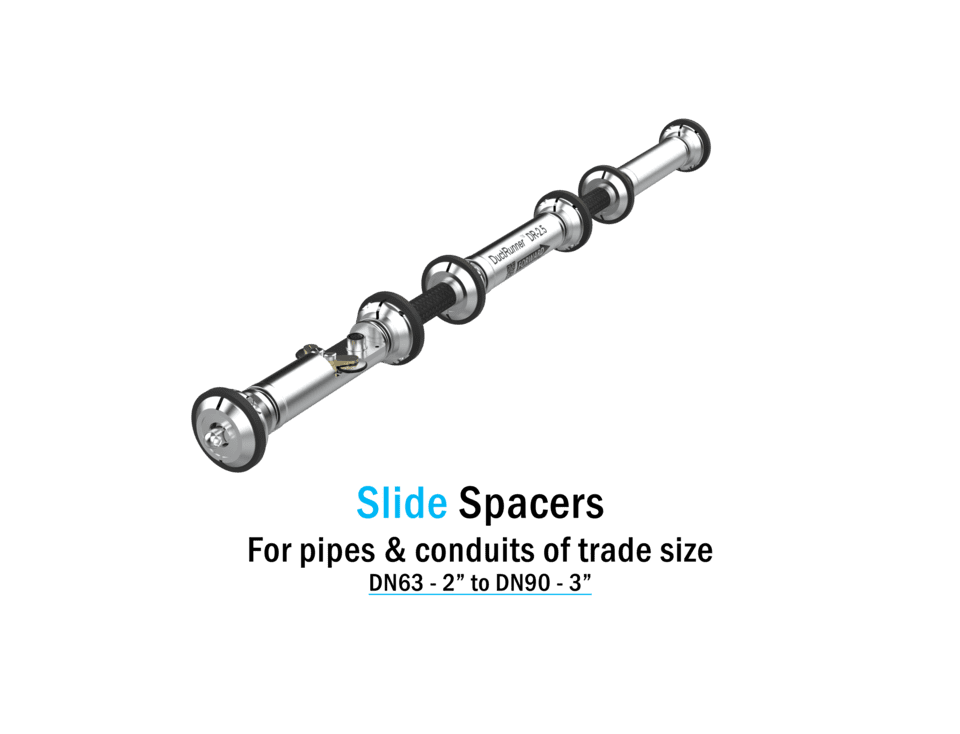

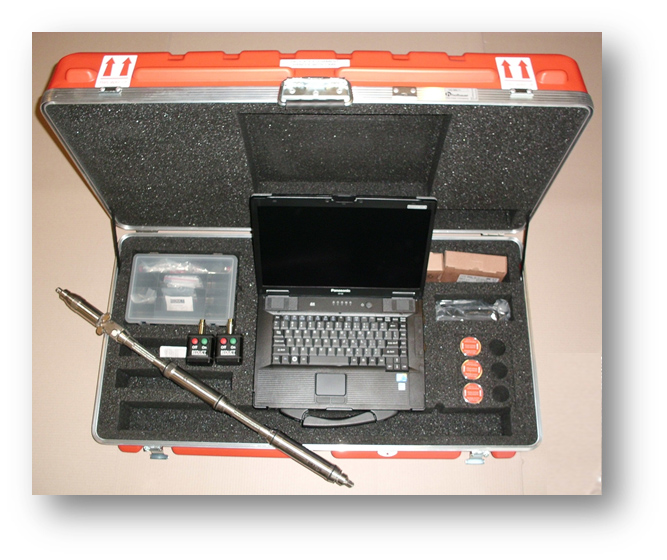

The DR-2 is a FOG-gyroscope based mapping tool specifically developed for generating accurate As-Built maps small diameter ducts. The standard DR-2 has an outside diameter of just 36mm and is suitable for a pipe ID of 40mm (1.5”). Optionally, a spacer set is available to scale the unit incrementally up to pipes and ducts with an ID of maximum 75mm (3.0”).

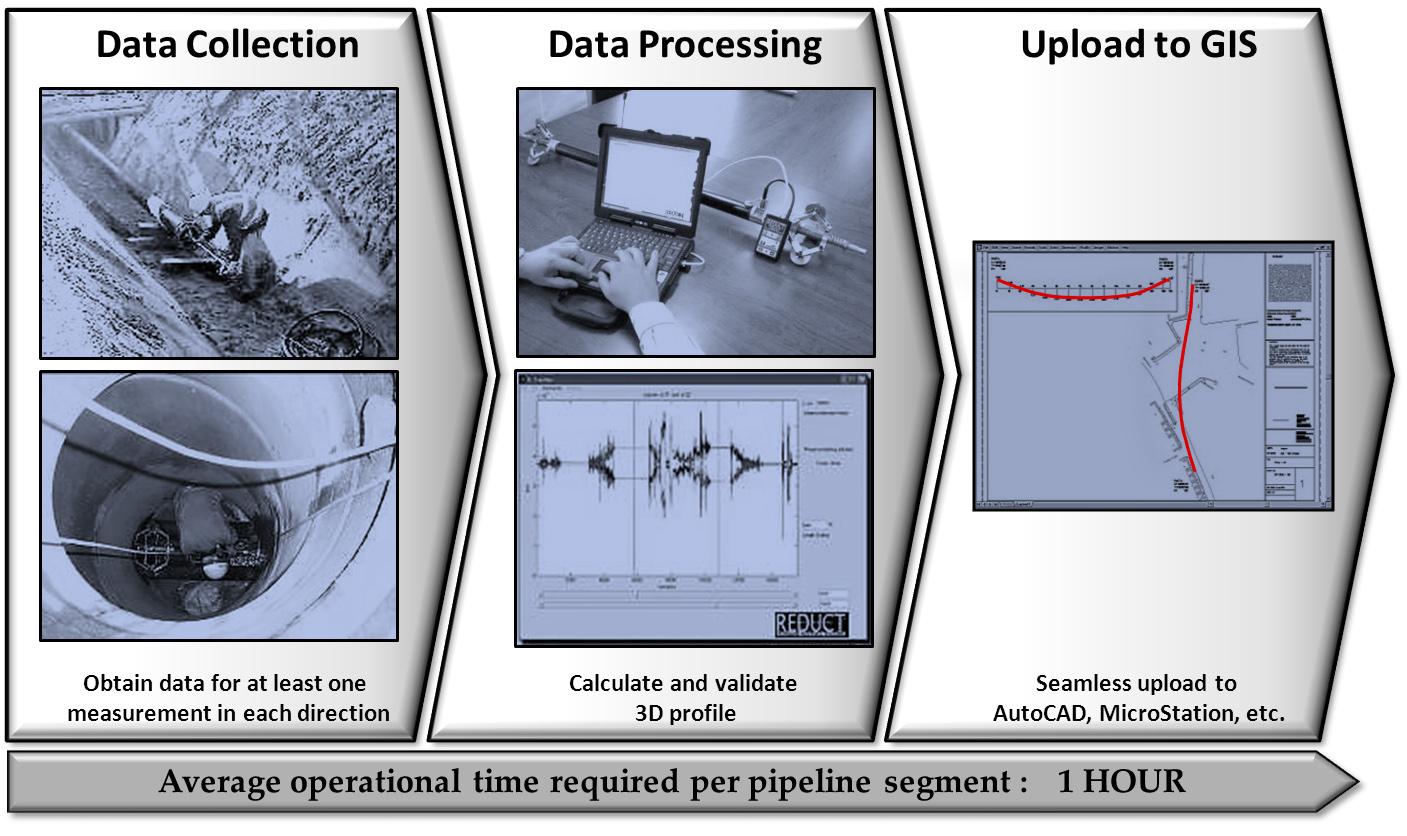

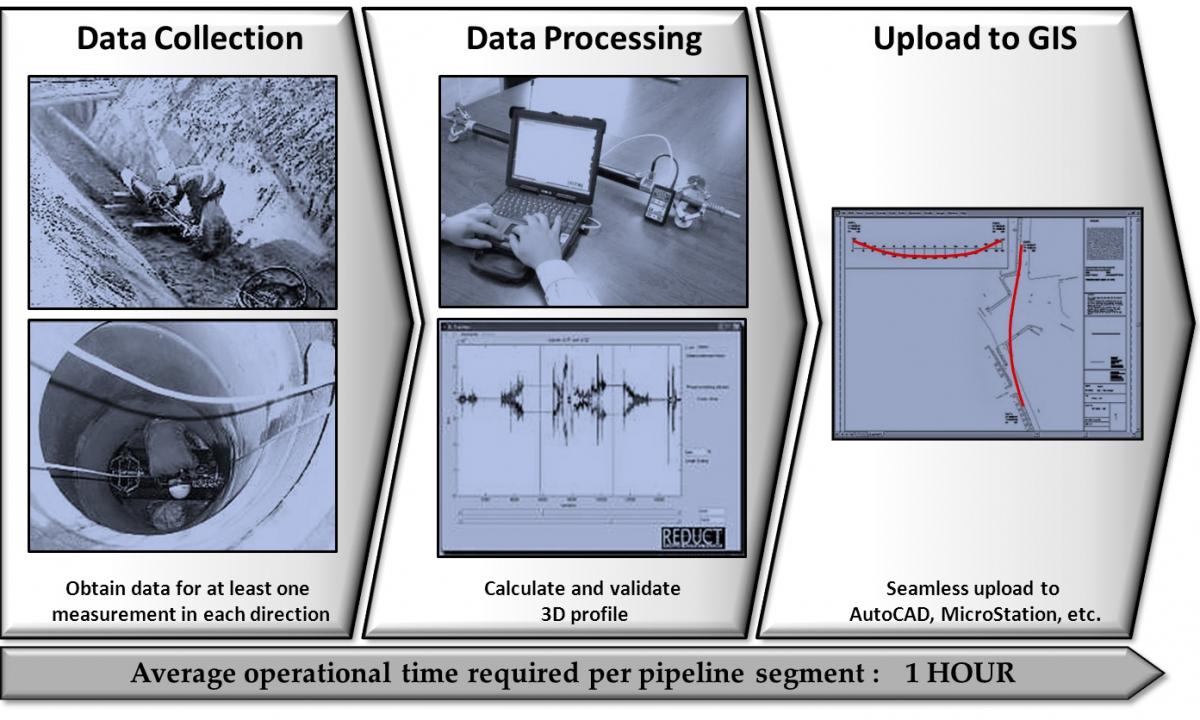

The DR-2 is robust and easy to operate. Typically, an As-Built of a pipe segment up to 1000m can be generated in 1 hour and output can be instantly viewed in most common GIS platforms.

Technical Specifications

Probe Length 950mm / 38”
Outer diameter 36mm / 1.4”
Probe weight (excl. spacers) 1.2 kg / 2lb
Measurement inclination range +45° to -45°
Pipe ID operating range 40mm to 75mm
Maximum Pulling Force 75kg / 150Lb
Maximum Travelling Speed 1m/sec
Data logging rate 100 Hz
Battery type / autonomy Lithium Ion / 4 hours
Operating temperature range : -10°C/15°F to 50°C/120°F

Key Operating Features

  • Minimum bend radius in:
    • DN50/SDR11 duct (ID40.8mm): 800mm
    • DN63/SDR11 duct (ID51.5mm): 600mm
    • DN90/SDR11 duct (ID73.6mm): 300mm
  • Unaffected by magnetic influences
  • Water resistant up to 5 bar / 75 psi
  • Data output compatible with most software programs

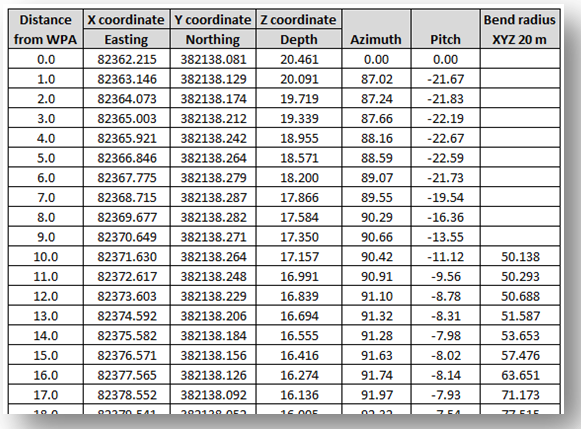

Output Data Summary

Unit : Metric or US Standard
Data frequency : User defined (minimum 1 cm)
Positional data : X(Easting),Y(Northing), Z(Depth), (3D) . Depth profile (2D)
Orientation data : Azimuth , Inclination
Pipe feature data : 2D and 3D Bend Radius information

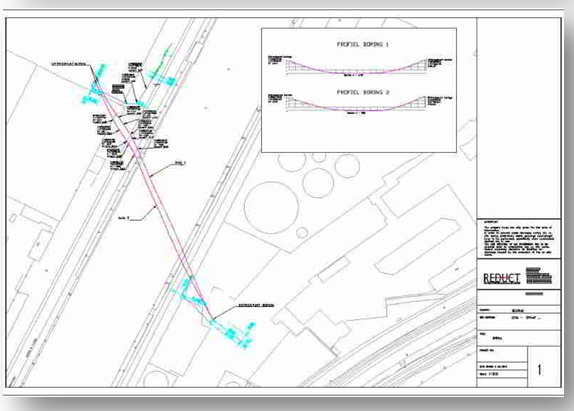

Output formats
  • AutoCAD script
  • Comma Separated Values (MS Excel, Total Station, etc.)
  • Bitmap diagnostics and orientation graphs
  • XML
