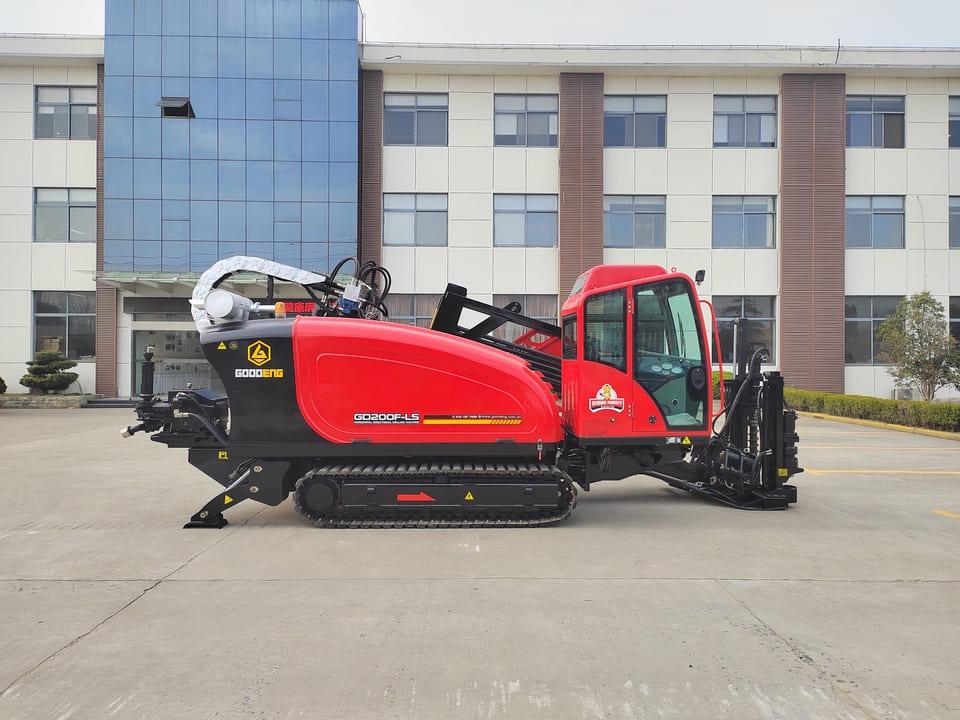

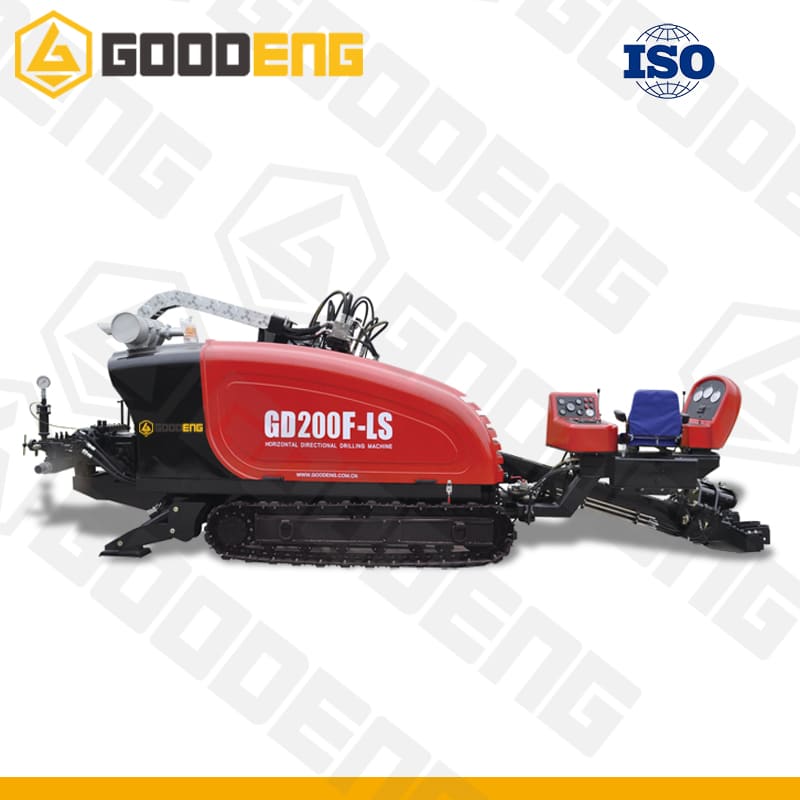

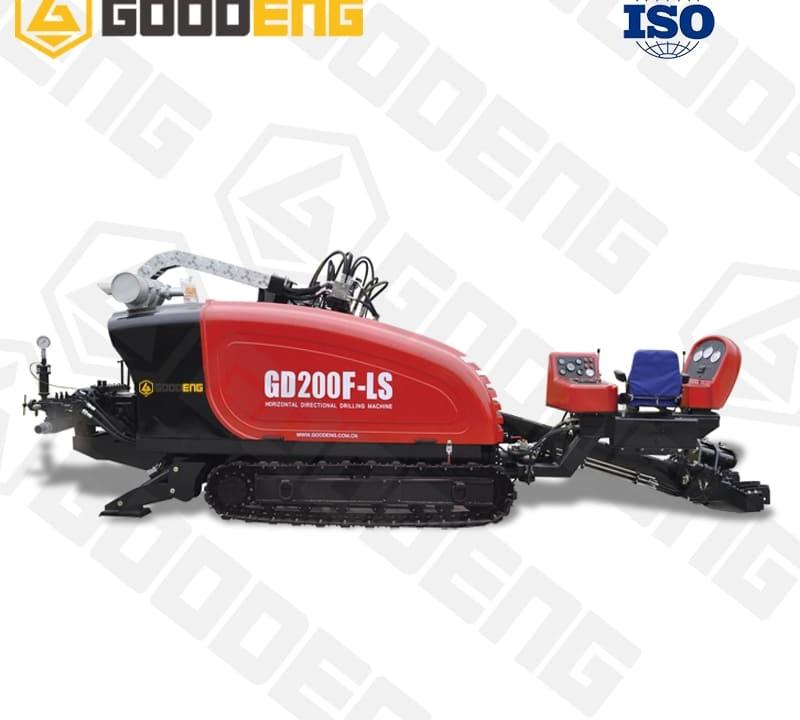

1.The machine is equipped with Cummins engine,with high efficiency,large power,low fuel
consumption,low noise,strong ability in construction.

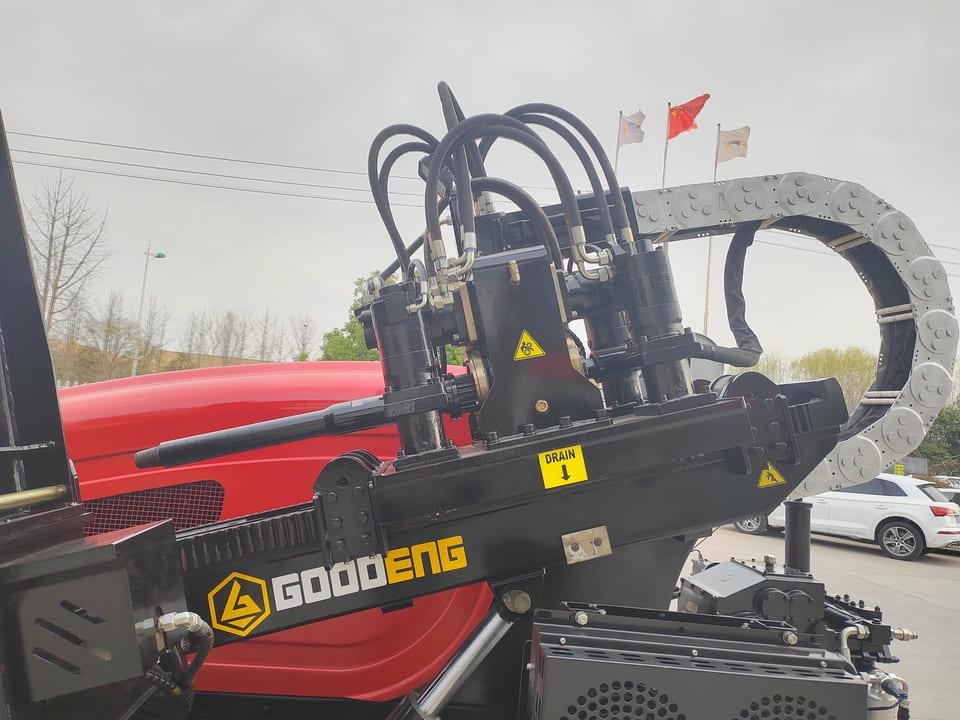

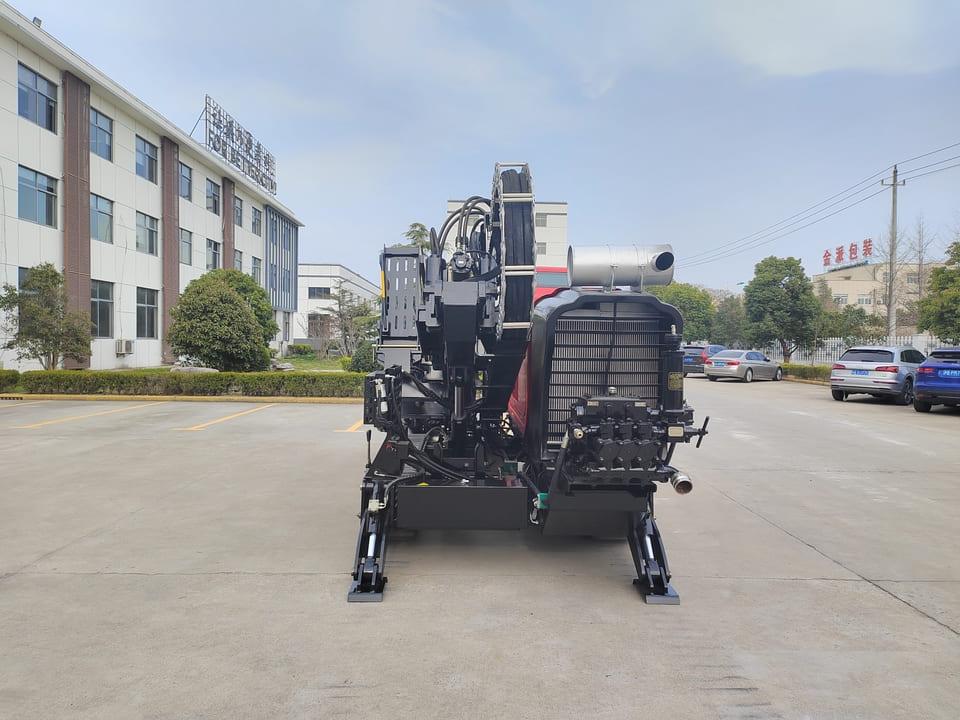

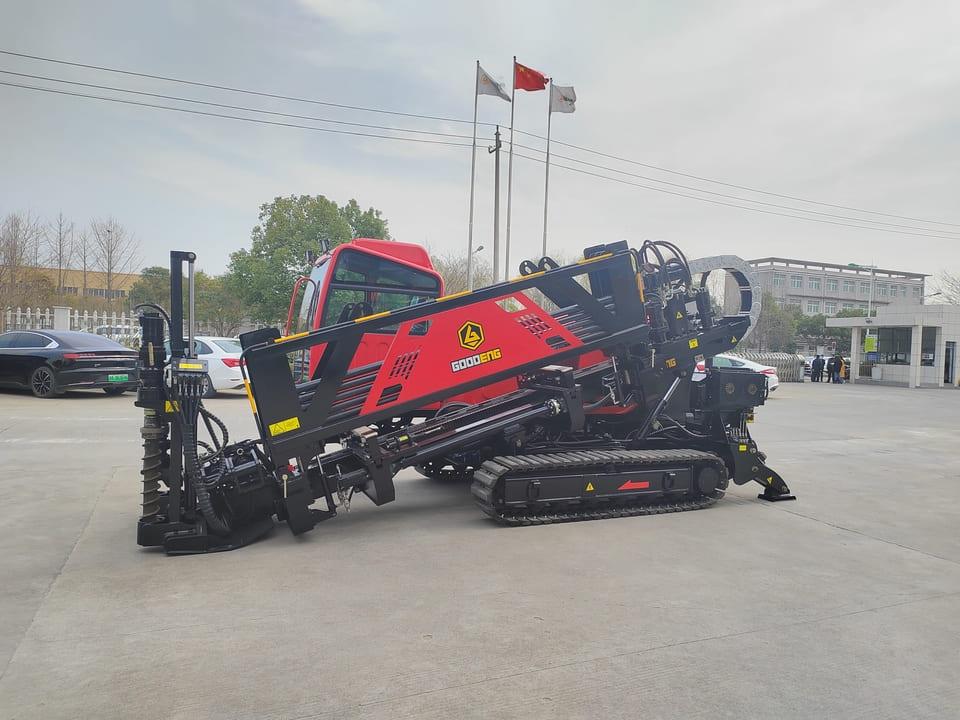

2.Rotation adopts American Eaton large torque motor driving directly,with large torque,stable
performance,and two gears speed regulation.Push pull adopts American Eaton motor and three gears
speed regulation.The Construction speed is far ahead of other manufactures in the same industry.Driving
head reserves reinforced power-push pull force,which expands the scope of drilling construction.

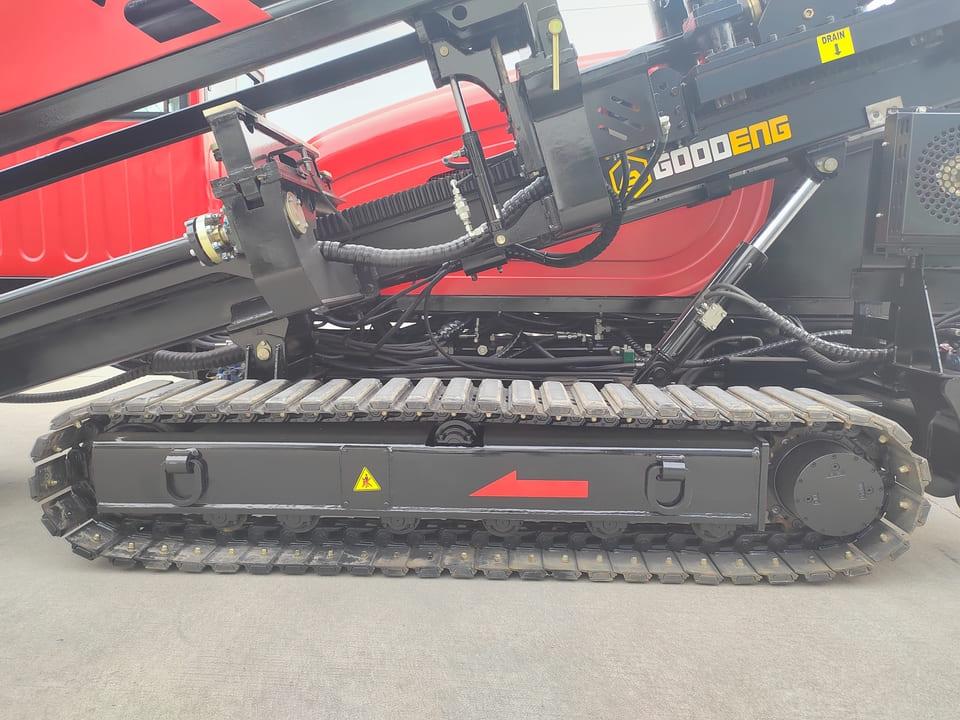

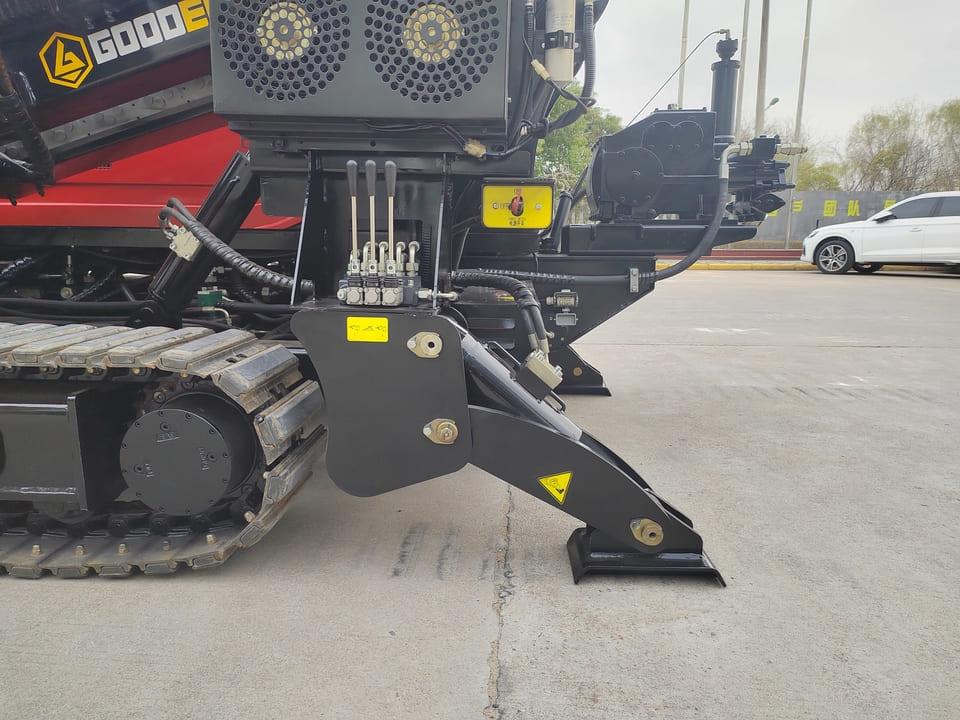

3.It is equipped with hydraulic gear pump with military technology.Steel track walks by wire-control,
which is convenient for load unload and transfer.
4.Operation table adopts man-machine construction manner with comfortable operation,which greatly
reduce workers fatigue level,broad vision,and comfortable seat.
5.Equipped with 60x3000mm drill rod,the machine uses less field area,meeting the requirement for high
efficiency construction in small place.
6.Electric design is reasonable with low failure rate,which is easy to maintain.
7.The rig shape is beautiful,easy to repair,which fully shows “people-oriented”design vision.
Rig Weight | 8200/9100kg |
---|---|
Dimension(L×W×H) | 6750×2050×2400mm |
Max thrust & pullback force | 225kN |
Max thrust & pullback speed | 60m/min |
Max torque | 6500N·m |
Max rotation speed | 230r/min |
Engine power | 110kW |
Max Mud Pump Flow | 250L/min |
Caterpillar crawling speed | 2.5-4km/h |
Max mud pump pressure | 8MPa |
Entry Drill Angel | 12 ~22 ° |
Max climbing gradient | 17° |
Max back-reaming diameter | Φ900mm (soil depended) |
Max crossing length | 300m (soil depended) |
Configuration
Engine | Commins | Push & Pull motor | American Eaton |
Mud Pump | Leike | Push & Pull motor | American Eaton |
Hydraulic Motor | Jinan military | Walking Motor | KoreaDesung/ Other |
