In the oil & gas industry top drive technology is used to increase performance and safety; from Drillmec solid experience in manufacturing hydraulic pipe handling and top drives, we introduce the ETD Series.
Enquiry about ETD Series

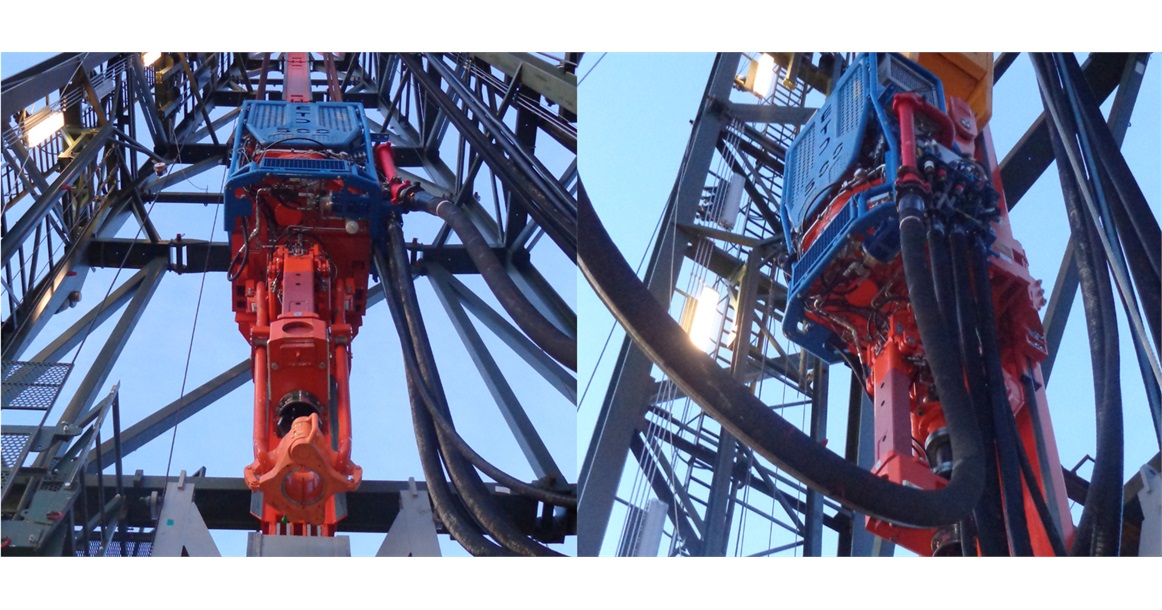

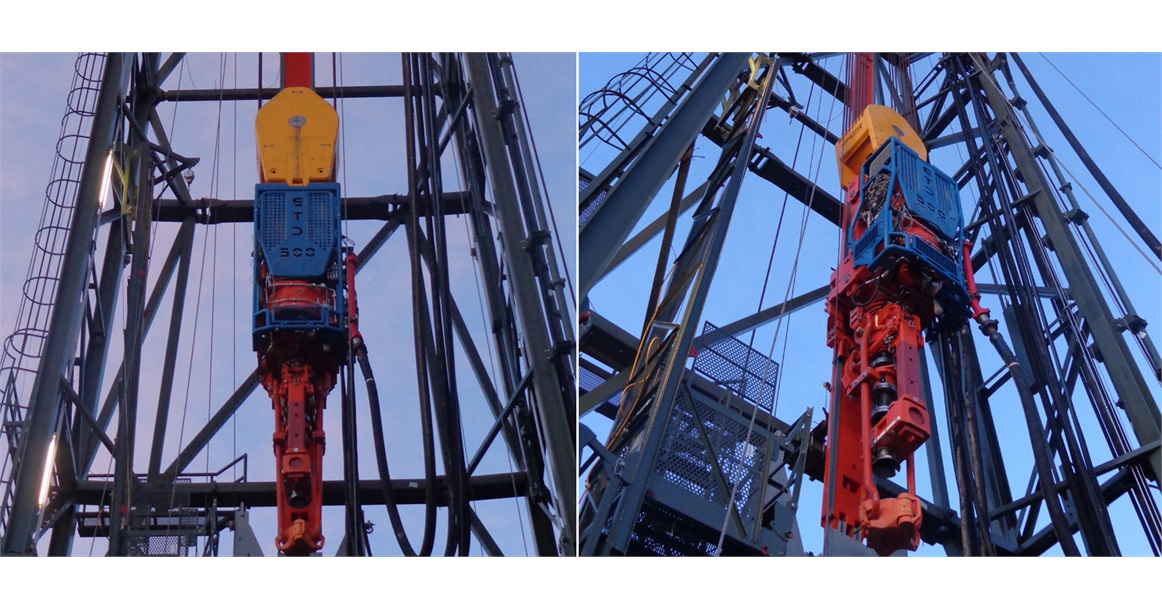

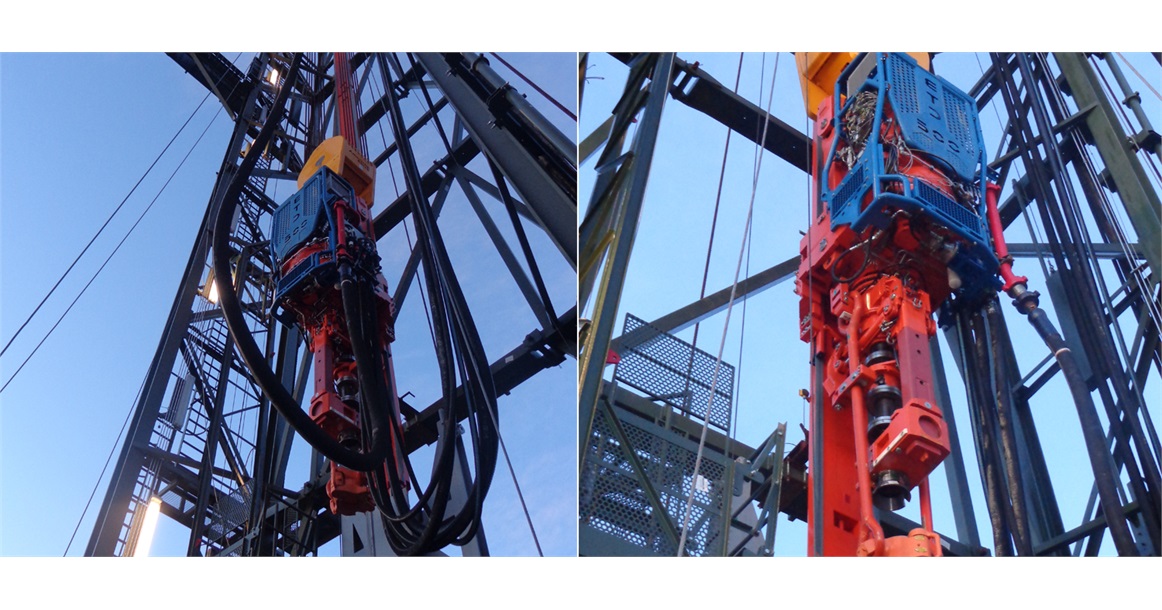

The Drillmec Electric Top Drive is designed as transportable as well as permanent installed unit for deep drilling rigs with different mast types. The System is powered by an AC motor. The ETD Series is controlled by a separate control panel. The standard Top Drive version includes the following items:
- Hanger assembly with integrated Counterbalance cylinders
- Standard washpipe
- Link-tilt-system with position monitoring designed for high impacts
- Remote-controlled and manual IBOP
- Backup Clamp to make up and break the Top Drive drill pipe connection
- Guide rail system inducing the torque within the mast
- Electrical service loop
- Suitable for installation on any kind of mast and derrick
Electric Top Drives Series (ETD Series)
We design electric top drive that is transportable, permanently mounted on different mast configurations for deep drilling rigs. Some of the features include:
• AC motor powers the system
• Separate control panel controls system
• Maximum speed range of between 200 rpm to 219 rpm
• Power rating range of between 450 kW (600 hp) to 850 kW (1150 hp)
• Maximum drilling torque range of between 43,200 Nm (31,662 lb/sqft) to 80,000 NM (59,000 lb/sqft)
•Maximum pull up static load of between 245 mt (550,000 lbs) to 680 mt (1,500,000 lbs)
Configuration
Metric
ELECTRIC TOP DRIVES | Max Pull Up Static | Max Drilling Torque | Max Make Up Torque | Max Break Out Torque | Power Rating | Max Speed |
---|---|---|---|---|---|---|
mt | Nm | Nm | Nm | kW | rpm | |
ELECTRIC TOP DRIVE ETD SERIES | lbs | lbs ft | lbs ft | lbs ft | psi | rpm |
ETD 250 | 245 | 43200 | 48000 | 60000 | 450 | 200 |
ETD 375 | 340 | 72000 | 85000 | 108460 | 850 | 184 |

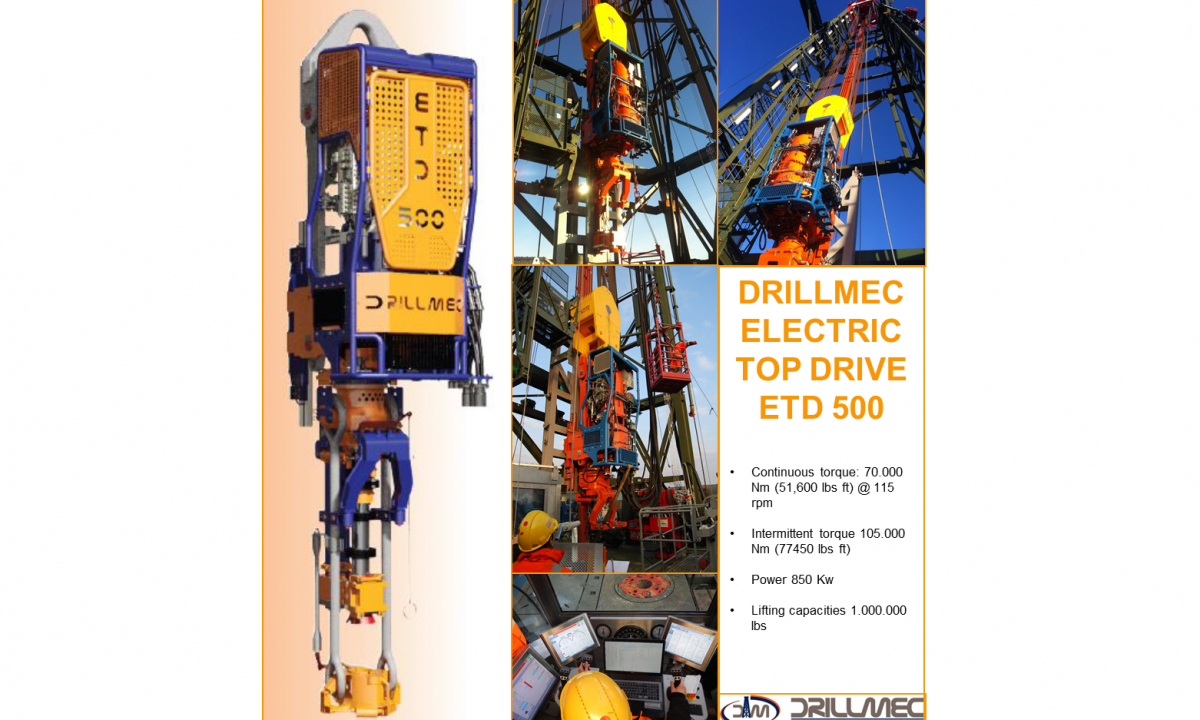

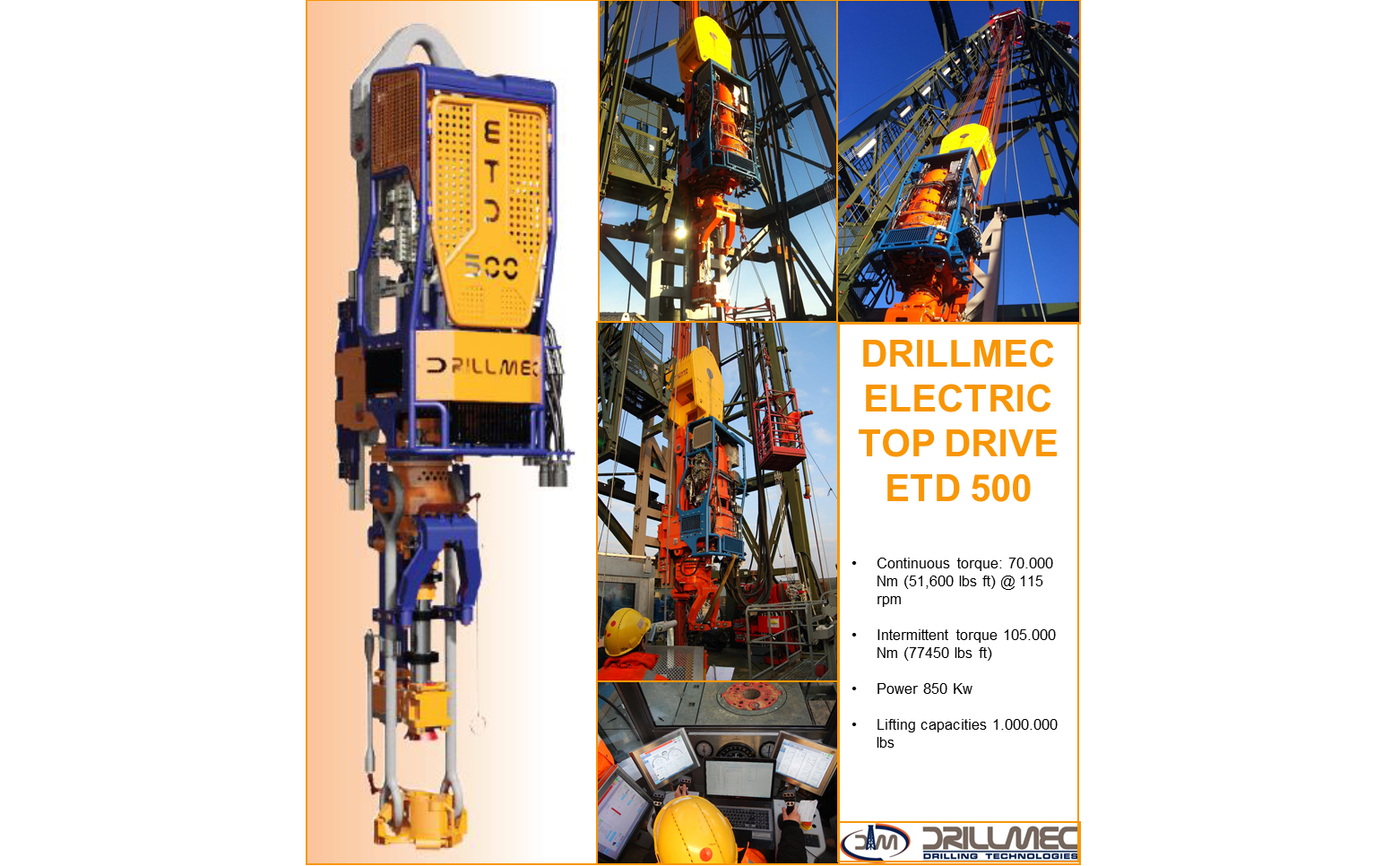

ETD 500 | 498 | 70000 | 85000 | 106630 | 850 | 219 |
ETD 750 | 680 | 80000 | 105000 | 130000 | 850 | 219 |
ETD 375 | 770000 | 32000 | 73700 | 92000 | 7500 | 150 |
ETD 500 | 1000000 | 51600 | 73700 | 92000 | 7500 | 115 |
ETD 750 | 1500000 | 78000 | 97000 | 117000 | 7500 | 108 |
USA
ELECTRIC TOP DRIVES | Max Pull Up Static | Max Drilling Torque | Max Make Up Torque | Max Break Out Torque | Power Rating | Max Speed |
---|---|---|---|---|---|---|
lbs | lbs*ft | lbs*ft | lbs*ft | hp | rpm | |
ELECTRIC TOP DRIVE ETD SERIES | lbs | lbs ft | lbs ft | lbs ft | psi | rpm |
ETD 250 | 550,000 | 31,662 | 35,400 | 44,250 | 600 | 200 |
ETD 375 | 750,000 | 53,100 | 62,692 | 80,000 | 1150 | 184 |
ETD 500 | 1,000,000 | 51,600 | 62,692 | 78,646 | 1150 | 219 |
ETD 750 | 1,500,000 | 59,000 | 77,444 | 95,883 | 1150 | 219 |
ETD 375 | 770000 | 32000 | 73700 | 92000 | 7500 | 150 |
ETD 500 | 1000000 | 51600 | 73700 | 92000 | 7500 | 115 |
ETD 750 | 1500000 | 78000 | 97000 | 117000 | 7500 | 108 |
