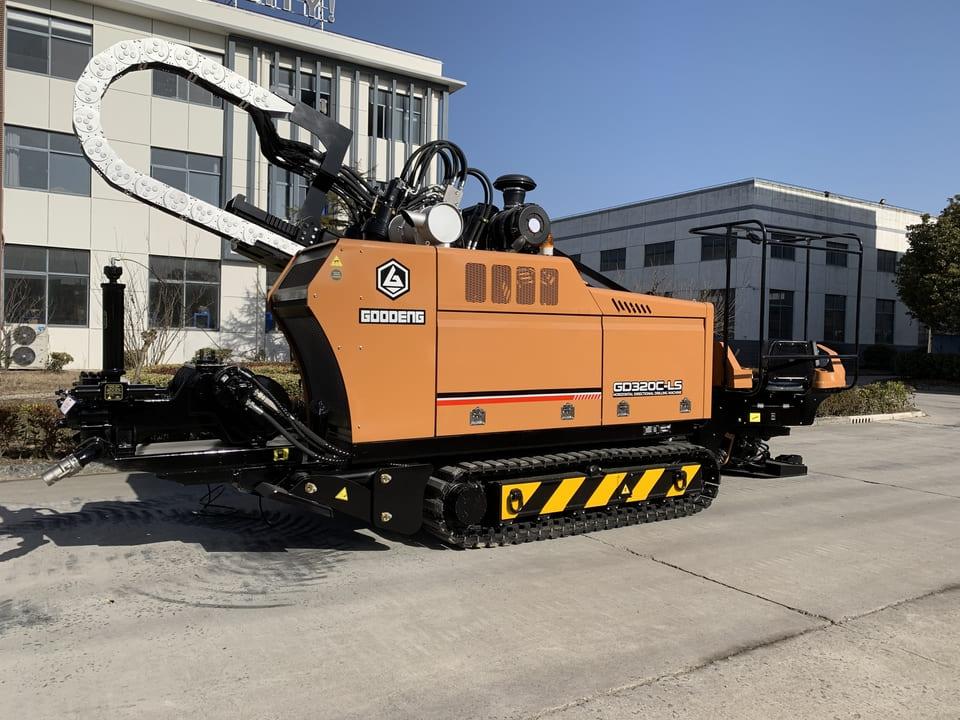

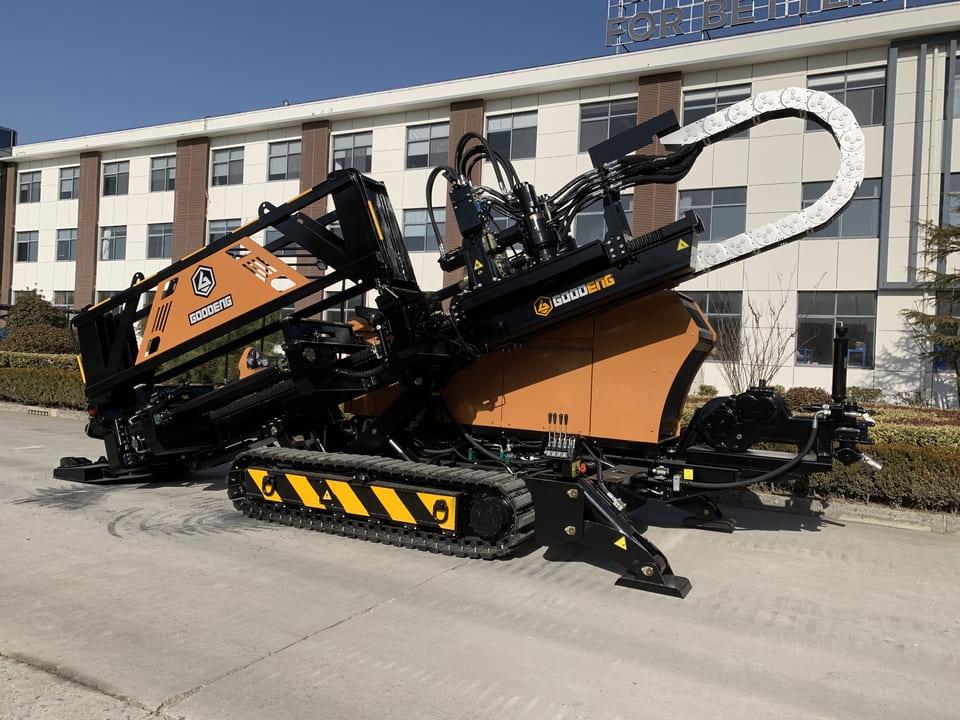

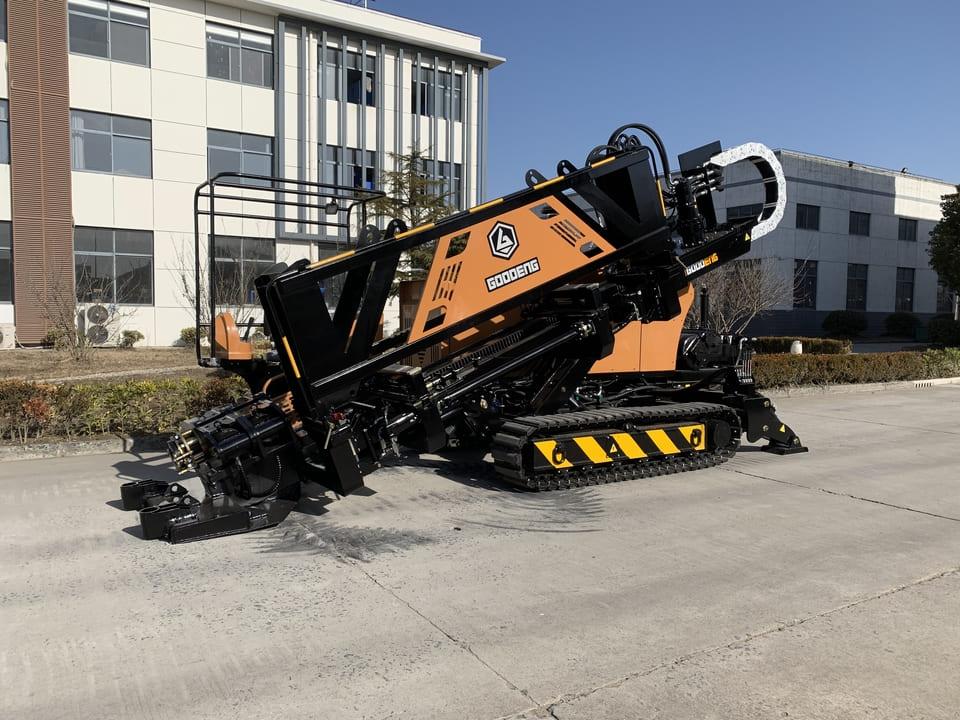

Goodeng International GD320D-LS
/
/
/
/
Goodeng International GD320D-LS

Model Number: GD320D

Category:

  1. Equipped with Dongfengcummins C205 engine, large power, stable performance, lower fuel consumption, lower noise, more suitable working in urban area.

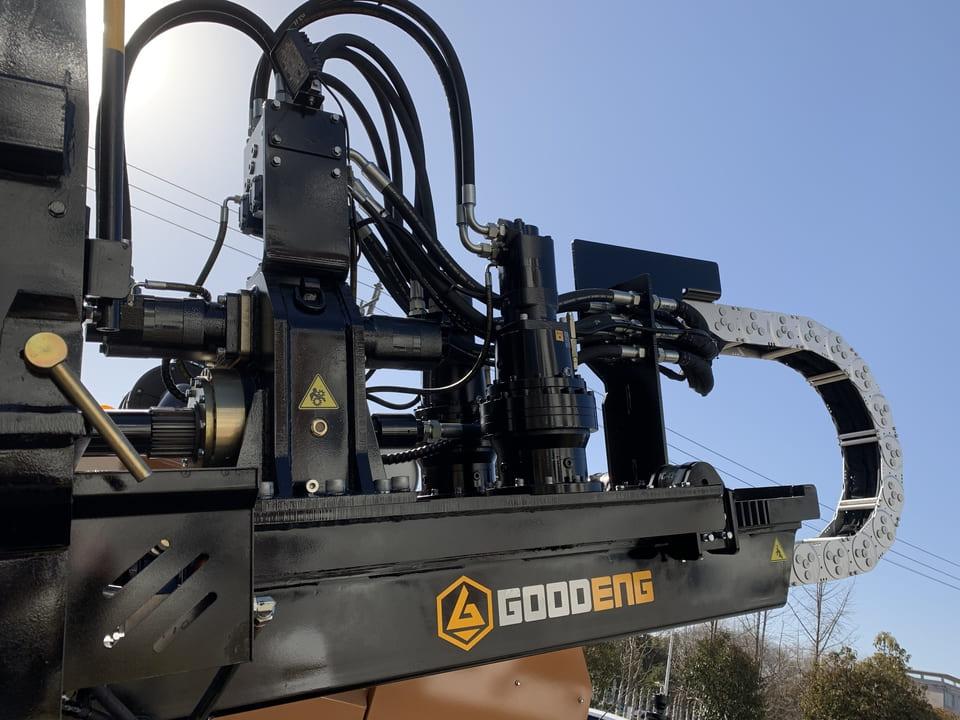

  2. Driving head rotation adopts cycloid motor from Eaton , with large torsion, stable performance, and two stall stepless speed regulation.
  3. Driving head adopts cycloid motor from Eaton and integrated push&pull reducer from German Dermayr .Push&pull has three-stall speed optional , it’s rapid construction leads far ahead in counter competitors.
  4. Ergonomic rotatable worktable,high quality seat forward/backward moveable with wider view range, comfortable and convenient operation.
  5. Europe-American style surface, streamline sculpt and elegant appearance fully embody humanist designing idea.
  6. The cover shell adopts overall backflip and air-spring assisted opening mechanism, with large open space and very convenient maintenance.
  7. Walking system adopts imported first-class hydraulic walking driving equipment with wire-control, convenient and fast loading, unloading as well as construction site transition.
  8. Both push&pull and rotation hydraulic system in driving head adopt advanced series/parallel connection control technique and imported international first-class hydraulic elements, independent radiation system, highly efficient productivity, reliable performance and energy saving.
  9. Simple electric circuit design, low failure rate , convenient maintenance.
  10. Equipped with φ73×3000mm drill rods,moderate machine size adapts to narrow and small working area and  high efficient construction as well.
Engine Power

153kW

Rig Weight

10,500kg

Walking Speed

3.5-6km/h

Dimension(L×W×H mm)

7300×2150×2250

Push & Pull capacity

325/637kN

Max psuh & Pull speed

40m/min

Max torque

12,600Nm

Max Mud Pump Flow

320L/min

Mud Pump Max Pressure

8MPa

Entry Drill Angle

12-20°

Max Rotation Speed

136r/min

Max. Drilling Length

500m

Max Aperture Diameter

Ф1100mm

Max. Climbing Gradient

18°

Configuration

Engine Commins Push & Pull motor American Eaton
Mud Pump Leike/zhongdi/Zhongtan Push & Pull motor American Eaton
Hydraulic Motor Jinan military Walking Motor KoreaDesung/ Other
