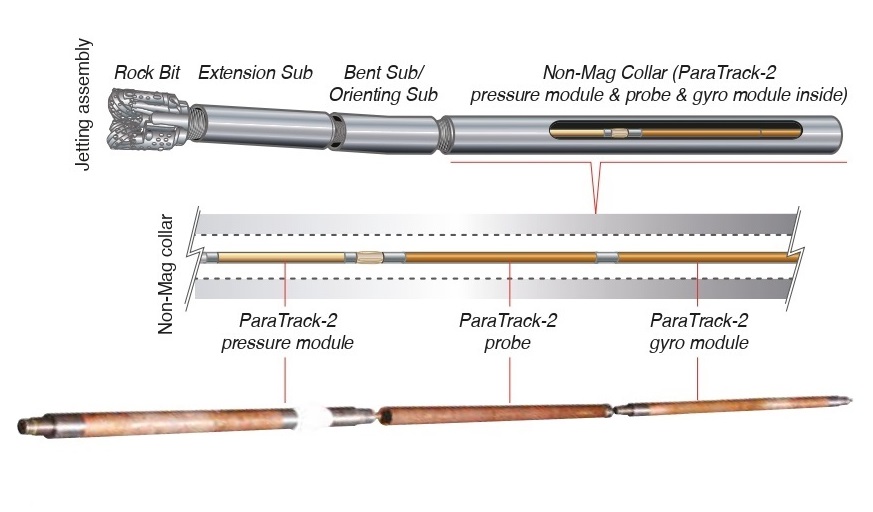

The ParaTrack Gyro Module (PGM) is the latest in a long line of innovations for the HDD market. With no concern of magnetic interference from nearby active utility lines, shorepiles, ship trac or other transportation activity, drilling may be carried out confidently, regardless of surrounding conditions. The PGM runs in conjunction with the ParaTrack Steering Tool, providing the ability to tie in with the entire ParaTrack System of tools and software.
The PGM is especially eective for initial surface entry, while absolute position may then be verified via the ParaTrack-2 Guide Wire or Beacon Tracker, providing confidence that the bore is placed properly relative to the planned exit location prior to punch out.
Outside Diameter | 2.75” (requires 3.5” ID collar) |
---|---|
Length | Head to foot – 48” (122 cm) |
Internal Operating Temperature | 0-70° C |
Electrical Connection | 1-3/16” 12tpi female (standard wet connect) |
