Model Number: GS1600-L

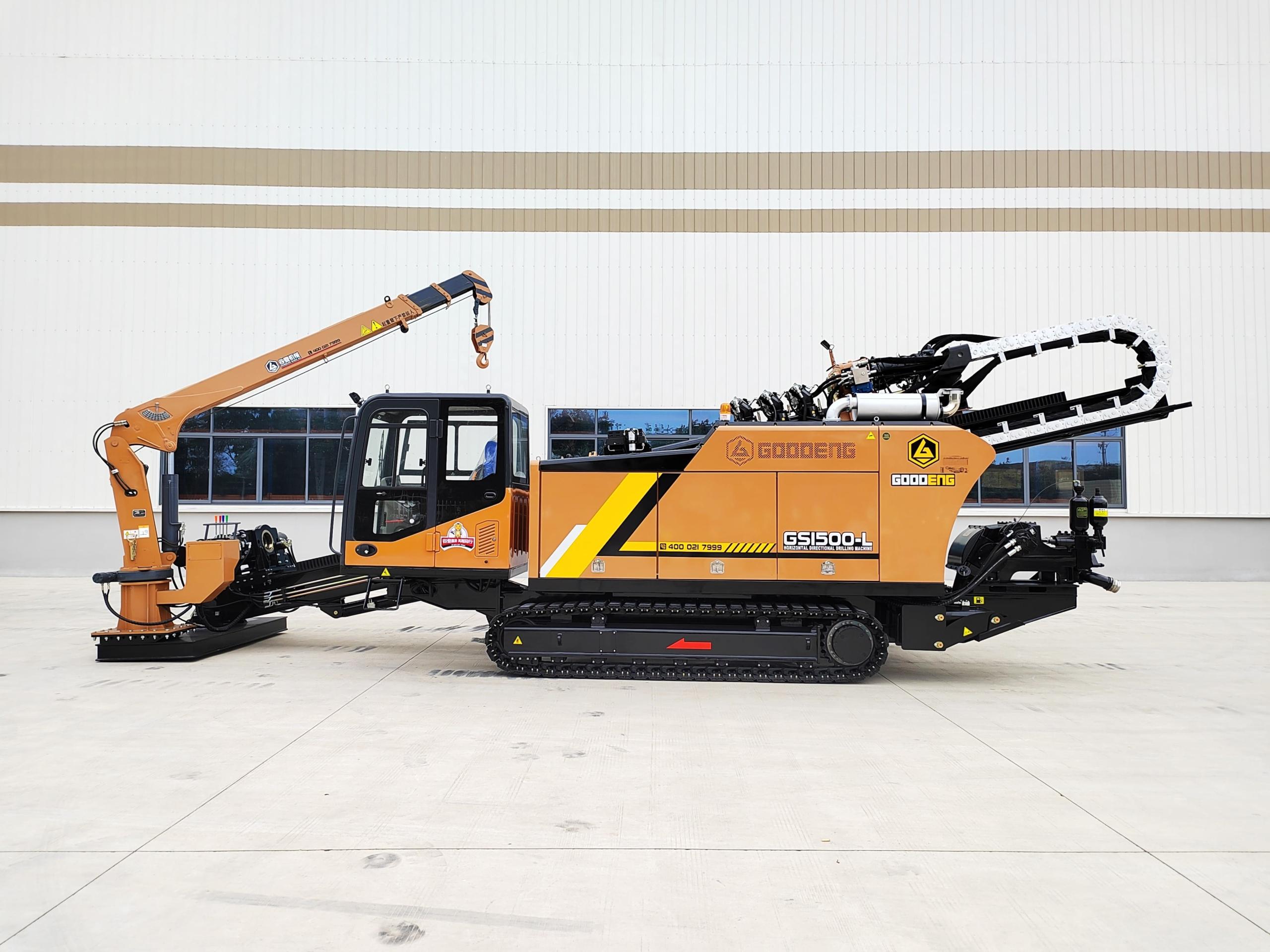

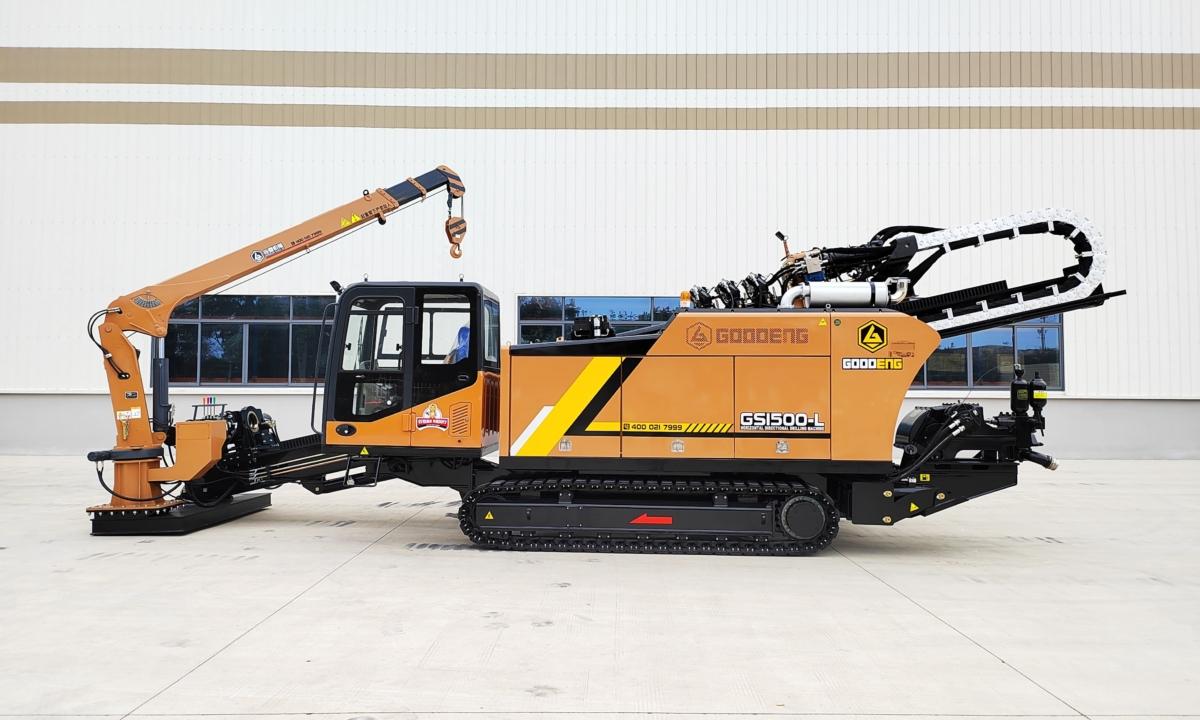

Enquiry about Goodeng International GS1500-LS
- Equipped with Cummins turbocharged engine with strong power, stable performance and lower fuel consumption than other engines;
- Thrust & pullback device which is equipped with German Rexroth /Sunny motor with simple transmission structure, reliable performance. Thrust & pullback has multi-stage variable speed and the thrust & pullback force can be raised up to 1500 kN, The working efficiency and speed is leading in industry;
- Rotation adopts Rexroth motor. Rotation has multi-stage variable speed，which greatly improved working efficiency.
- Adopts double-speed motor which walks at the speed up to 5 km/h. The short-distance jobsite transfer doesn’t need to be loaded on the truck.
- Low clamping center can protect the drill rod effectively, and takes up small construction space. Front and rear wrench can be separated, and the clamping can change block according to drill rod specification.
- The floating spindle is to protect drill pipe thread.
- Four-link amplitude mechanism is adopted and the angle range is large (10°~19°). The drilling rig center of gravity is lower and the stability is better;
- Proportional line control walking system that ensures the safety of rig and personnel in process of walking, loading and uploading.

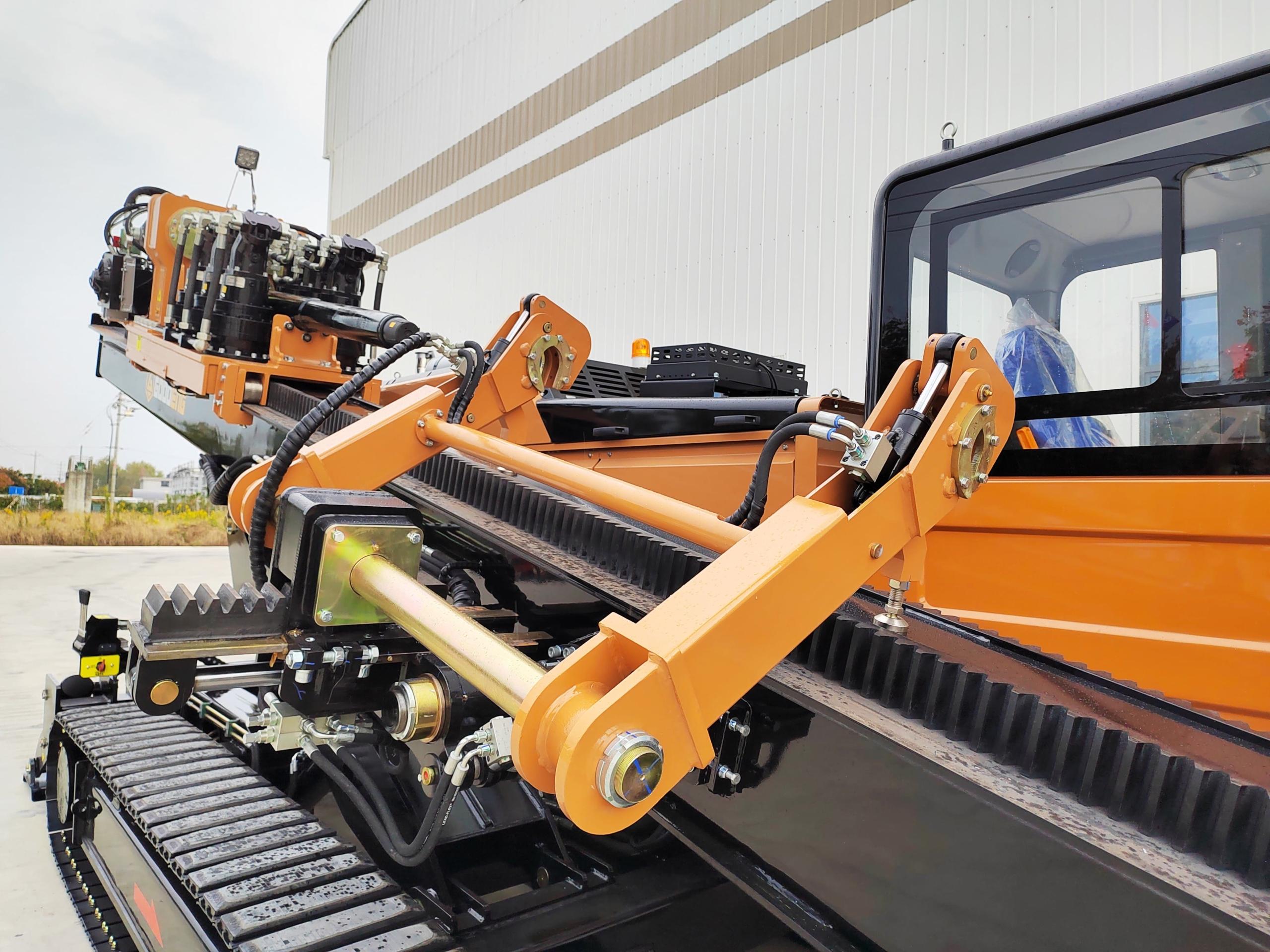

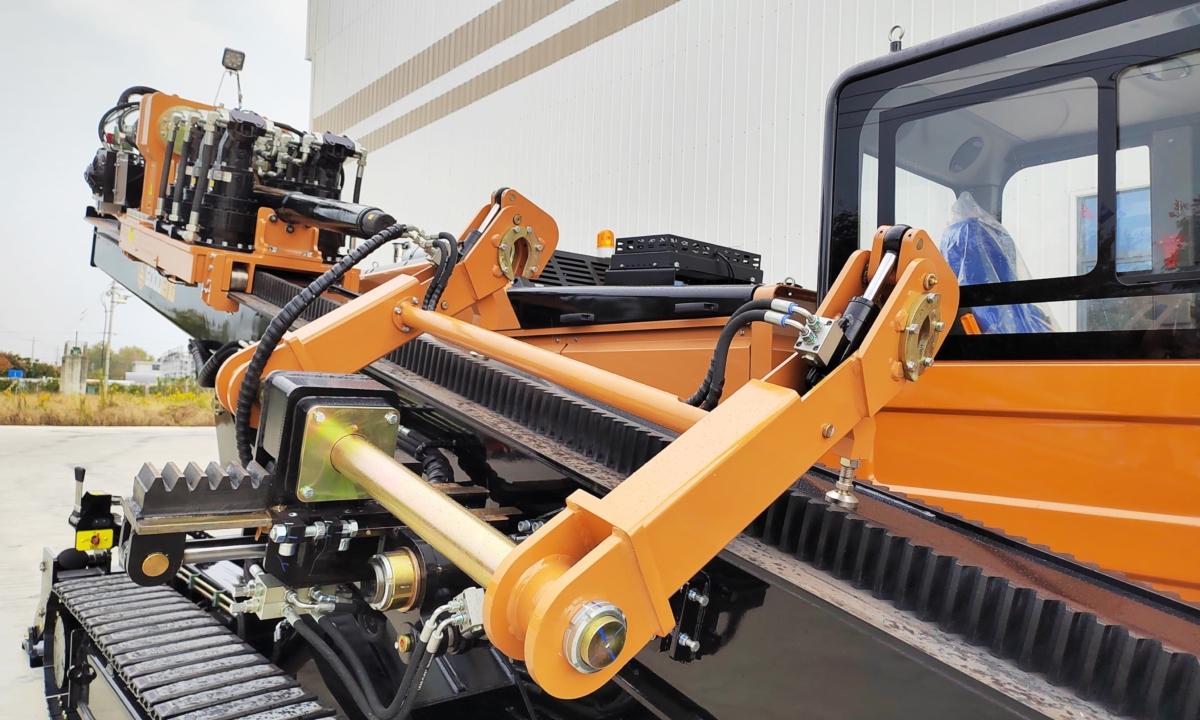

- Rotary Manipulator is Goodeng’s patent. The drill rods slip automatically, so there is no need to unload drill road with people which can save labour charge.
- The on-board operating room has large space and can be rotated, which is equipped with warm and cold AC.
- LCD man-machine interactive system can monitor and adjust the state of the equipment in real time. The operation is simpler and more comfortable.
| Engine Power | 264kW |
|---|---|
| Rig Weight | 23000kg |
| Max. Thrust & Pullback Force | 1500kN |
| Dimension（L×W×H mm） | 11000×2700×3300 mm |
| Max. Thrust & Pullback Speed | 39 m/min |
| Max. Rotation Speed | 90 r/min |
| Max torque | 53000 N·m |
| Max. Mud flow | 800 L/min |
| Max. Mud Pressure | 10 MPa |
| Entry Drill Angle | 10° -19° |
| Max. Climbing Gradient | 17° |

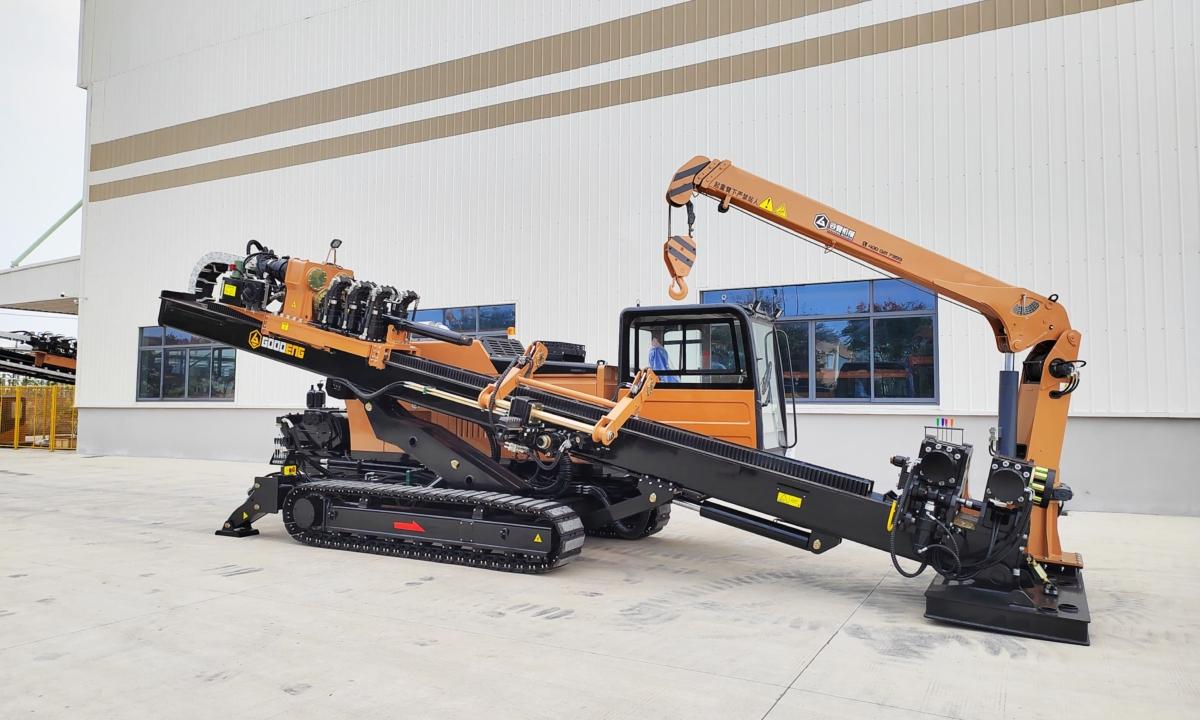

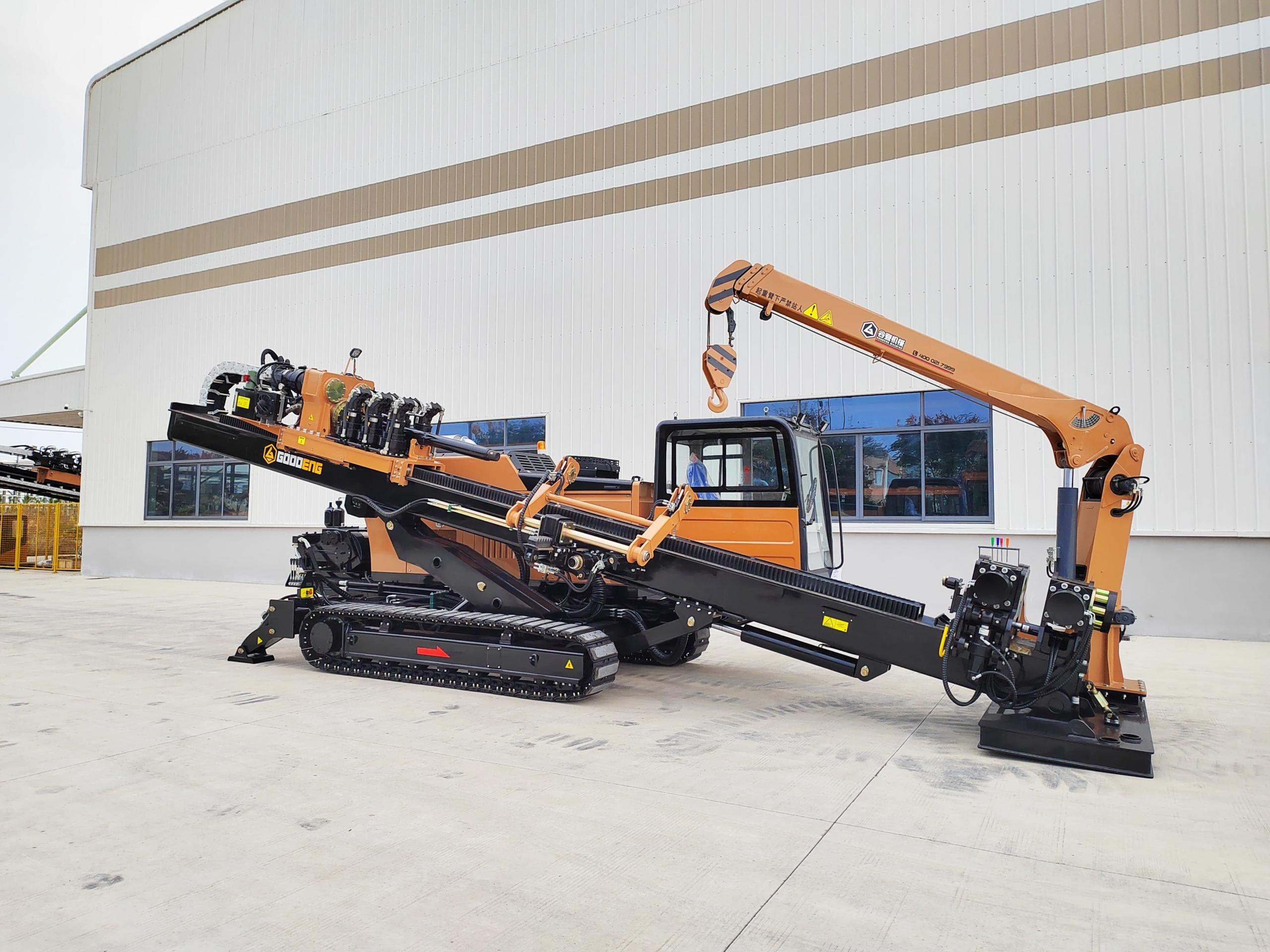

| Crane Capacity | 3 T |
