1.German Linde hydraulic control closed system is adopted in rotation system,which is simple,stable
and reliable.Thrust pullback by Germany Linde Hytek automatic variable system,load sensitive
control.The variable pump system of thrust pullback and rotation can increase the working
efficiency by 15-20%compared with the traditional hydraulic system,reduce the calorific value by
50%,and save energy by 15-20%.
2.The thrust pullback and rotating joystick adopts hydraulic control mode,which reduces the failure
caused by the aging of eletrical components and makes the system is more stable and responsive.
3.The machine is eqipped with Cummins engine,with high efficeency,strong power,and low fuel
4.Carriage reserves reinforcement,which increases the max.thrust pullback force increase to 960kN,
which ensures the safety of the construction in the construction of big diameter
5.The four-link amplitude modulation beam structure is adopted to greatly improve the range of
incident angle,and to ensure that the track of drilling rig does not leave the ground when the angle is
large,and to improve the safety performance.
6.Wire control walking system to ensure the safety of walking process.
7.Applicable for 89×3000 mm drill pipe,the machine is compacted design and is easy for jobsite
8.Key parts of machine are purchased from gloable leading suppliers,which greatly improved
reliability of products peformance.
9.The circuit adopts wire harness design,which the failure rate is low and easy to maintain.
10.Rack pinion transmission mechanism is adopted for thrust pullback systerm,which is good for
high effiency,stable working and maintenmance is also conveninent.
11.The track adopts steel track and rubber gasket,which can not only bear high load,but also meet the
requirements of walking on various roads

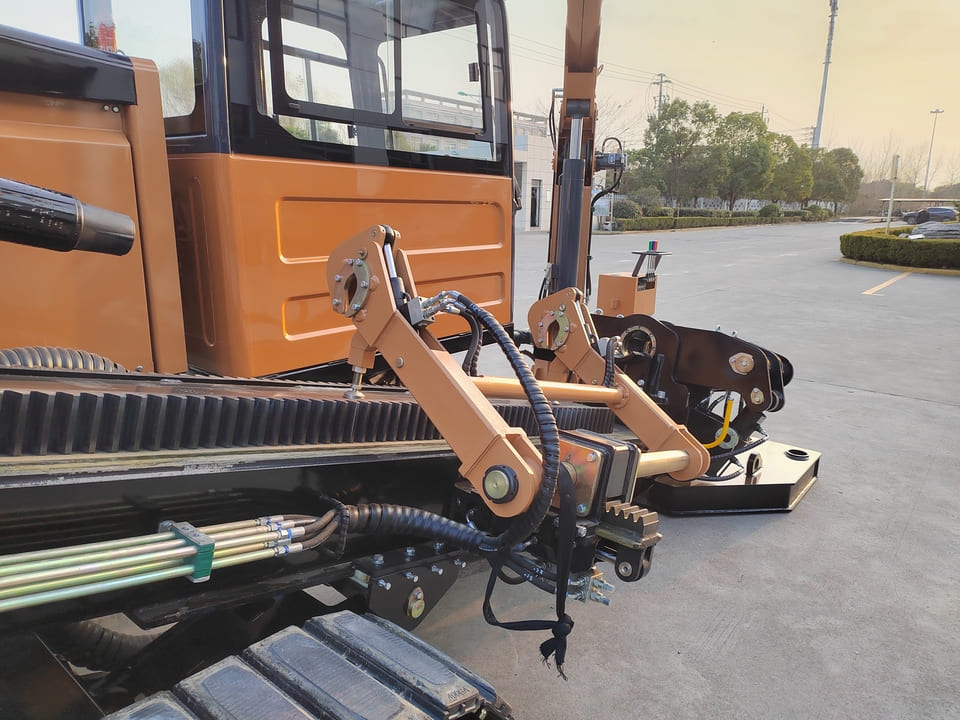

12.Equipped with rototary manipulator to achieve automatic upper and lower drill rods safte and
13.Optional rotating cab which has wide field of vision and greatly improve the work environment for
|Max.thrust& pullback speed||
|Max Rotation speed||
|Max mud pump flow||
|Caterpillar Walking Speed||
|Mud Pump Max Pressure||
|Entry drill angle||
|Max climbing gradient||
|Max back-reaming diameter||
Φ1300mm (soil depended)
700m (Soil Depended)
