EXL: Extended Range – 0.1% Pitch (Light Gray)* | ||||
Length x Diameter | Depth Range | Battery Type | Temp. Rating | Weight |
19 in. x 1.25 in. 48.3 cm x 3.18 cm |
85 ft 25.9 m |
SuperCell™ Lithium 30 hours awake 100 hours sleep |
220°F 104°C |
1.85 lb 840 g |
EDF: Dual Frequency – 0.1% Pitch (Lavender) | ||||
Length x Diameter | Depth Range | Battery Type | Temp. Rating | Weight |
15 in. x 1.25 in. 38 cm x 3.18 cm |
40 ft* 12.2 m 60 ft* |
2 C-cell alkaline 20 hours awake 100 hours sleep |
220°F 104°C |
1.4 lb 635 g |
ET: Standard Range – 0.1% Pitch (Black) | ||||
Length x Diameter | Depth Range | Battery Type | Temp. Rating | Weight |
15 in. x 1.25 in. 38 cm x 3.18 cm |
50 ft 15.2 m |
2 C-cell alkaline 20 hours awake 200 hours sleep |
220°F 104°C |
1.4 lb 635 g |
ES: Short Range – 0.1% Pitch (Gray) | ||||
Length x Diameter | Depth Range | Battery Type | Temp. Rating | Weight |
8 in. x 1 in. 20 cm x 2.5 cm |
8 in. x 1 in. 20 cm x 2.5 cm |
1AA-cell alkaline 12 hours awake 200 hours sleep |
180°F 82°C |
8.4 oz 240 g |
ECP: Cable Transmitter – 0.1% Pitch (Black) | ||||
Length x Diameter | Depth Range | Battery Type | Temp. Rating | Weight |
19 in. x 1.25 in. 48.3 cm x 3.18 cm |
100 ft 30.5 m |
12V to 28V DC Cable Power |
180°F 82°C |
1.85 lb 840 g |

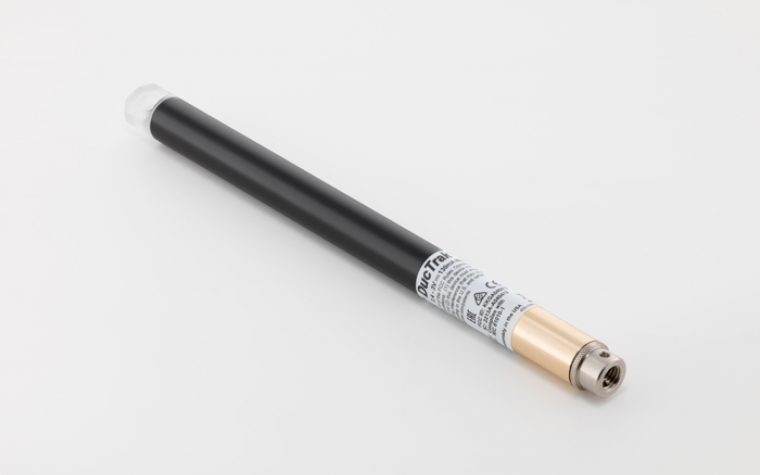

DucTrak™ Series Transmitters
DucTrak™ is designed to track existing non-metal duct to depths down to 80 feet. It does not send out a roll / pitch signal and is not intended for horizontal directional drilling operations. The EDDT/EDTS models are designed for use with the Eclipse locators.
EDDT DucTrak™ Extended Range Transmitter | ||||
Length x Diameter | Depth Range | Battery Type | Temp. Rating | Weight |
12 in. x 0.875 in. 30.5 cm x 2.2 cm |
80 ft 24.4 m |
Type DL 123 3V lithium 8—12 hr life (approx.) |
22°F to 122°F -5.6°C to 50°C |
8.4 oz 240 g |
EDTS DucTrak™ Transmitter | ||||
Length x Diameter | Depth Range | Battery Type | Temp. Rating | Weight |
6 in. x 0.875 in. 15.2 cm x 2.2 cm |
40 ft 12.2 m |
Type DL 123 3V lithium 8—12 hr life (approx.) |
22°F to 122°F -5.6°C to 50°C |
4.5 oz 127 g |
