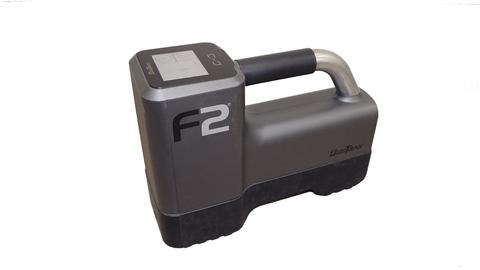

DCI F2

The DigiTrak® F2® delivers the most popular features of the Eclipse®
locator with enhanced features, greater ease of operation and a license to have fun while you track.
分類:

  • Streamlined graphic display and intuitive picture-driven menu structure simplify operation.
  • Both bird’s-eye and side views are shown simultaneously for exceptional accuracy and clarity.
  • Two different frequency options are available.
  • Operates at depths up to 85 ft (25.9 m) with 0.1% sensitive pitch without a wire.
  • Includes advanced features of off-track locating and Target Steering® to easily and accurately navigate the drill even when obstacles prevent tracking over the drill head.
  • Roll offset is available when the 12 o’clock position of the drill head cannot be indexed to the transmitter.
  • A 4-channel radio enables multiple F2® locators to be in the same vicinity and work up to distances of 1800 ft (550 m) plus, making it suitable for maxi rigs.
  • Is compatible with 12 kHz DucTrak™ transmitters.

技術參數

Part Number F2R
Frequencies 12 kHz and 19.2 kHz
Power Source DigiTrak® Lithium-ion battery pack
Battery Life 10 – 14 hrs (approx.)
Battery Charger 12 V DC or 110/240 V AC
Functions Menu driven
Controls Trigger switch
Graphic Display LCD
Audio Output Beeper
Depth Range Up to 85 ft (26.9 m)
Telemetry Range 1800 ft (550 m)
Telemetry Channels 4 channels
Compatibility F Series™ and DucTrak™ transmitters
Operating Temperature Range -4°F to 140°F (-20°C to 60°C)
Accuracy ± 5% absolute

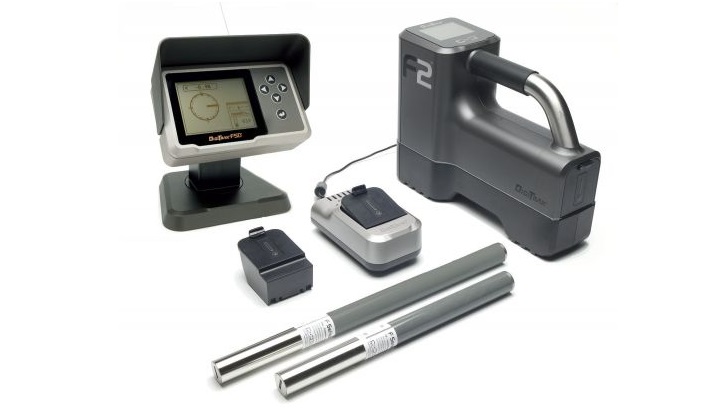

配件

F Series™ Display

The F Series™ Display (FSD™) lets you see drilling information at the drill and can receive telemetry signals from the F5®, F2®, Eclipse®, Mark III, and Mark V locating systems. The FSD™ remote display is equipped with externally mounted antenna. Additional antenna options available upon request for increased telemetry range.



F Series™ Transmitters

DCI offers several different transmitters for use with the F2®system. Go to the transmitters page for more information.

The F2® Locating System is compatible with DCI’s DucTrak™ transmitters, which are used for tracking existing non-metallic ducts.



F Series™ Lithium-ion Battery Charger

DigiTrak® F Series™ lithium-ion battery charger and lithium-ion battery packs have LEDs to provide quick status checks.



MFCB — Multi-Function Cable Box

The DigiTrak® Multi-Function Cable Box (MFCB) is required when using an SST® transmitter or an F Series™ or Eclipse® cable transmitter. The MFCB provides power to the cable transmitter and the remote display, and it sends transmitter data to the remote unit for display.
