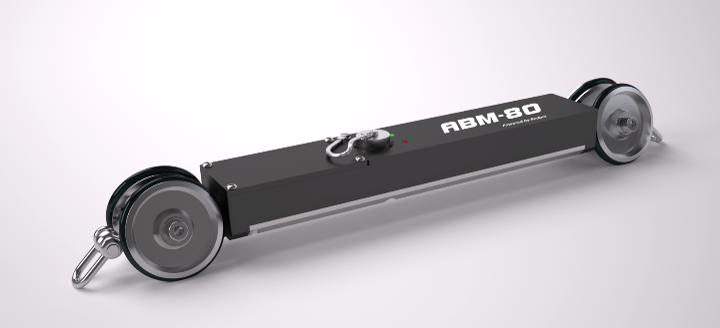

Initially developed for towing behind a CCTV crawler, the compact size of the ABM-80 has become the ‘go-to’ tool for pipes and ducts that have tight bends or unusual obstructions.

With a length of 400mm (16“) and a weight of 2kg (4lb), the ABM-80 is easy to handle and is suitable for pipes with an ID range of 80mm to 500mm ID (3.2 – 20“).

Wit a slight adaptation, the ABM-80 can be used to perform flat floor profiling.

The ABM-80 is a MEMS-gyroscope based mapping tool specifically developed for
generating accurate As-Built maps of short distance buried pipelines. The ABM-80 fits in
pipes with an internal diameter of 80-500mm (3.2-20”).

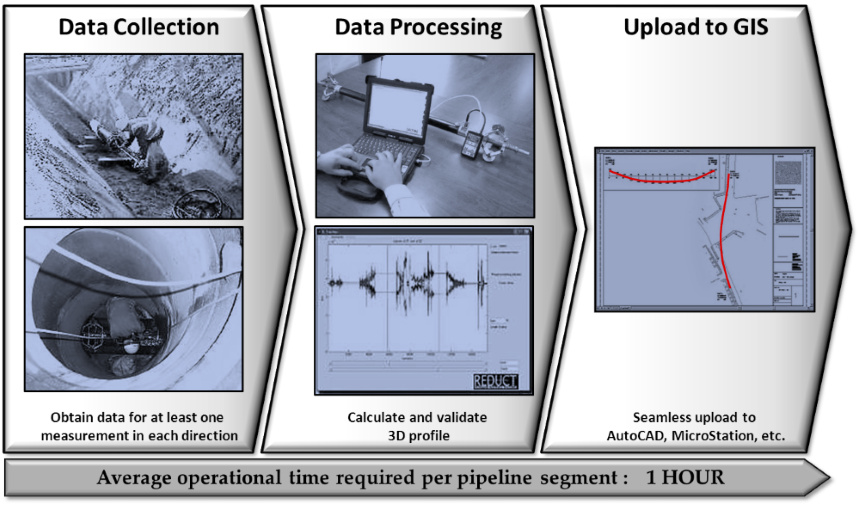

The ABM-80 is very compact and easy to operate and is ideal for waste water, HDD’s and
similar shaped pipeline segments up to 200m in length. Typically, an As-Built profile of a
pipe segment can be generated in 30 minutes. Data processing requires mere minutes
and output can be instantly viewed in most common GIS platforms such as AutoCAD,
ESRI and Microstation.

Technical Specifications

Probe Length : 400mm / 16″
Probe weight (excl. spacers) : 2kg / 4lb
Measurement inclination range : +45° to -45°
Pipe ID operating range : 80mm – 500mm / 3.2 – 20″
Maximum Pulling Force : 30kg / 60Lb
Maximum pipe length : 200m / 650′
Maximum travelling speed : 1m/sec
Data logging rate : 100 Hz
Battery type / autonomy : 2 x AA / 3 hours
Operating temperature : 0°C/32°F to 50°C/120°F

Key Operating Features

  • Unaffected by magnetic influences
  • Water resistant up to 5 bar / 75 psi
  • Data output compatible with most software programs
