OMU ABM-30

The ABM-30, is the world’s smallest gyroscopic mapping device., It is the perfect mapping solution for small diameter data & power cable ducts, HDD drillings and even house connections.

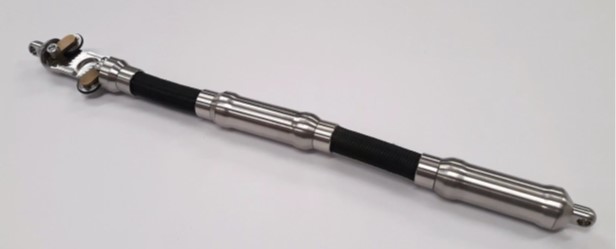

The ABM-30 is a unique MEMS based mapping probe designed for trade size ducts
DN40 and 1¼”. With a diameter of just 25mm/1”, the ABM-30 can map aged pipe with
slight deformations and negotiate bends with a minimum radius of 0.6m / 2‘.

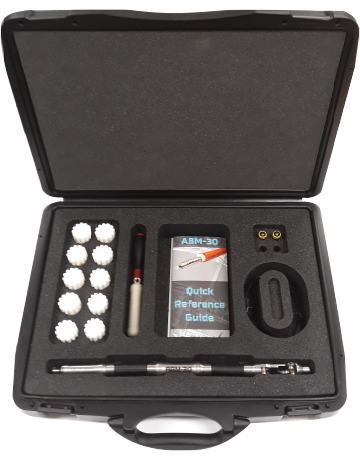

The ABM-30 can be fitted with bespoke soft foam spacers to
ensure optimal alignment while still allowing the probe
to pass duct deformations up to 20% ID.

The ABM-30 is compact and easy to operate, even in
congested manholes. Data processing requires mere
minutes, so a trained team can map up to 8 duct segments
per day.

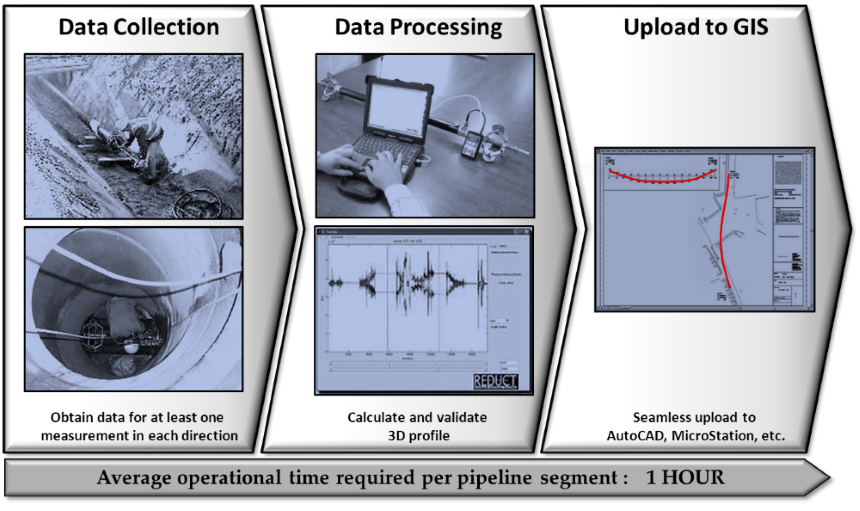

System output includes 3D as-built data, 2D and 3D bend
radius data, accurate duct length and a separate software
module generates output suitable for calculating cable
tension when pulled or blown.

Technical Specifications

Probe Length : ±420mm / 16.5″
Outer diameter : 25mm / 1.0″
Probe weight (excl. spacers) : 0.6 kg / 1.2lb
Measurement inclination range : +45° to -45°
Pipe ID operating range : 29-34mm / 1.1-1.35″
Maximum Pulling Force : 40kg/80Lb
Maximum travelling speed : 1m/sec
Data logging rate : 100 Hz
Battery type / autonomy : Lithium Ion / 4 hours

Key Operating Features

  • Minimum bend radius in:
    Trade size DN40/SDR11 : 0.6 mm
    Trade size 1.25”/SDR11 : 2 ft
  • Unaffected by magnetic influences
  • Water resistant up to 5 bar / 75 psi
  • Data output compatible with most software programs
