Enquiry about OMU DR-3.3

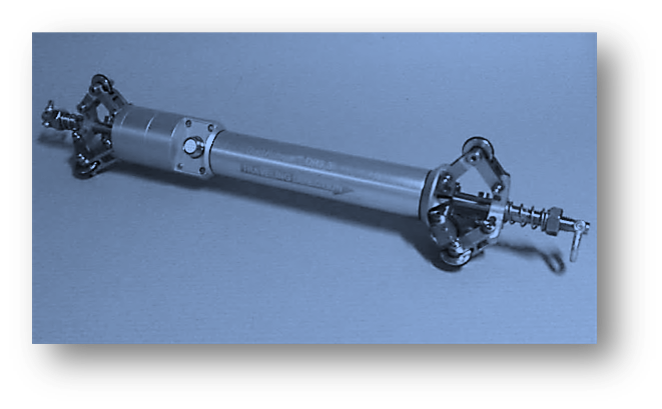

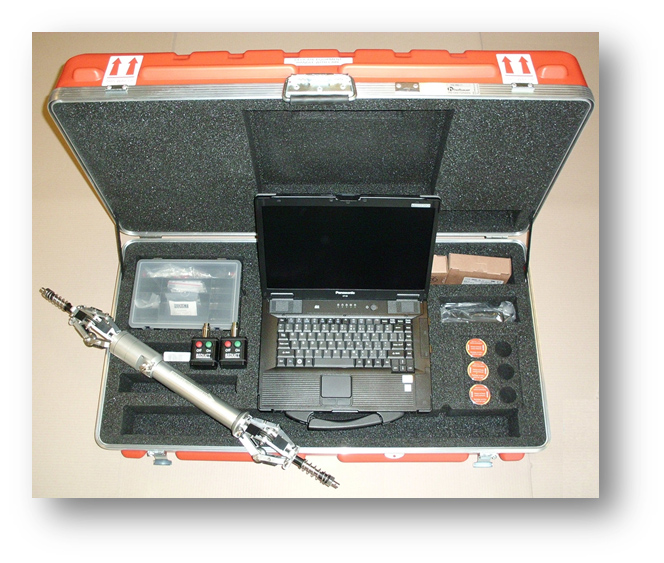

The DR-3.3 is the latest member of the Ductrunner™ family. The DR-3.3 is suitable for pipe ID range 65mm to 115mm (2.6″ to 4.5″). The DR-3.3 has proven to be the tool of choice for mapping electricity cable conduits which combine a mid-range diameter with fairly sharp bends.
The compact design and choice of materials has kept the weight of the probe down to just 1.5kg/3lb, making handling and operations very efficient and simple.
As with all Ductrunner™ probes, the DR-3.3 is not susceptible to electromagnetic interference from nearby power lines.
Technical Specifications
Probe Length | : 552mm / 21.75″ |
Outer diameter | : 42/56mm / 1.7/2.25″ |
Probe weight (excl. spacers) | : 1.5kg / 3lb |
Measurement inclination range | : +45° to -45° |
Pipe ID operating range | : 65mm to 115mm |
Maximum Pulling Force | : 120kg/240Lb |
Maximum Travelling Speed | : 2m/sec |
Data logging rate | : 100 Hz |
Battery type / autonomy | : Lithium Ion / 2 hours |
Operating temperature range | : -10°C/15°F to 50°C/120°F |
Key Operating Features
- Minimum bend radius in:
- Pipe ID75mm/3″) : 2.25m / 7.5ft
- Pipe ID90mm/3.5″) : 1.55m / 5.1ft
- Pipe ID115mm/4.5″) : 1.00m / 3.3ft
- Unaffected by magnetic influences
- Water resistant up to 5 bar / 75 psi
- Data output compatible with most software programs

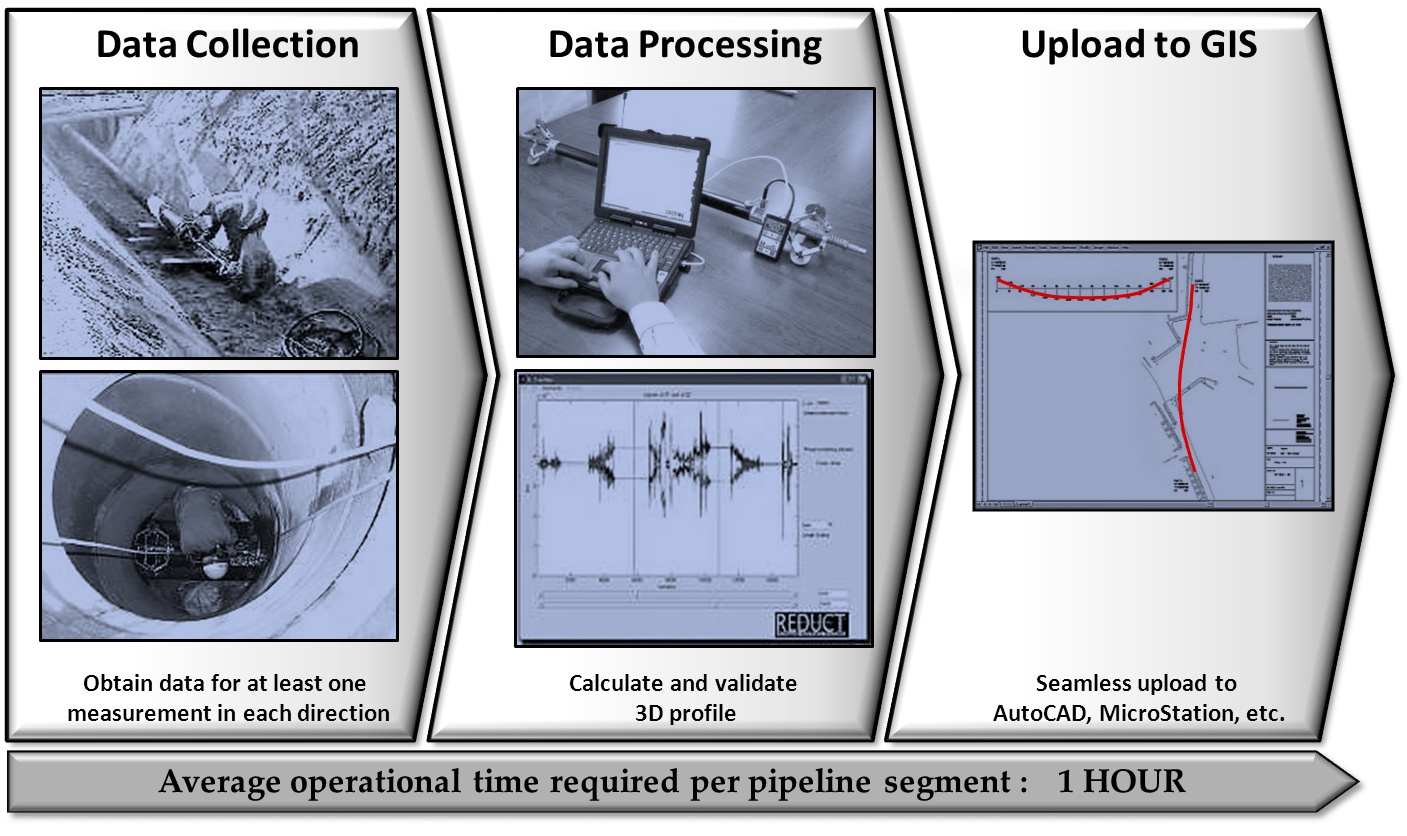

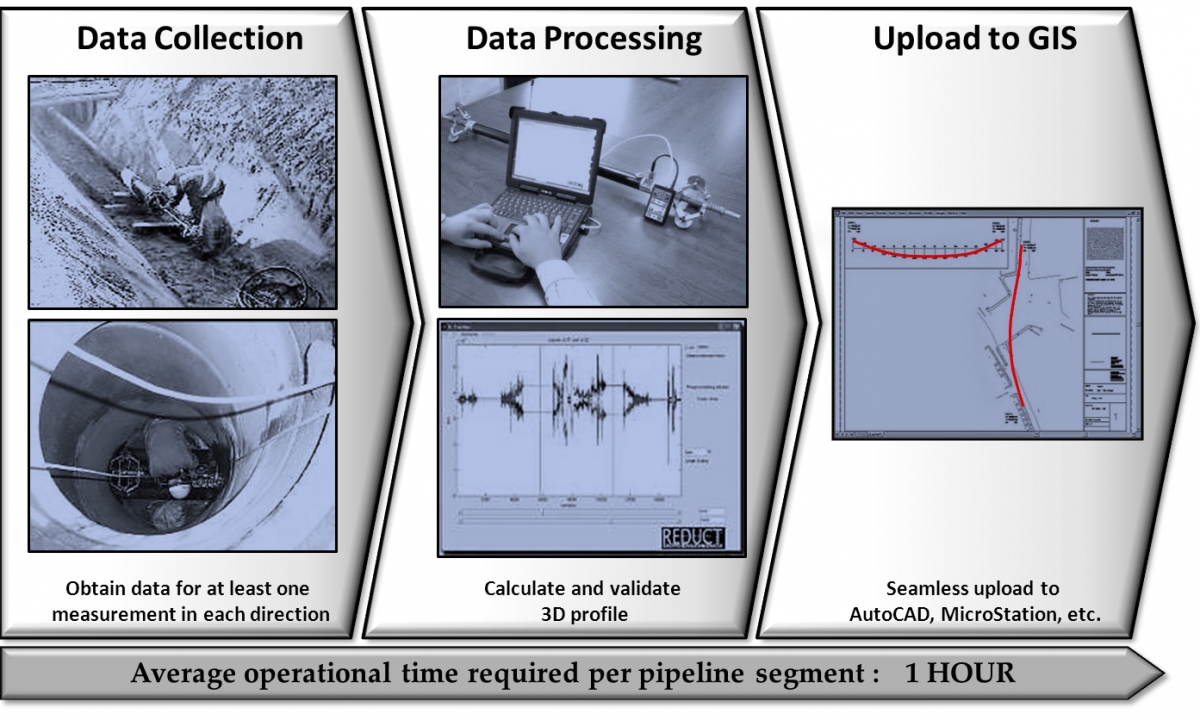

Output Data Summary
Unit | : Metric or US Standard |
Data frequency | : User defined (minimum 1 cm) |

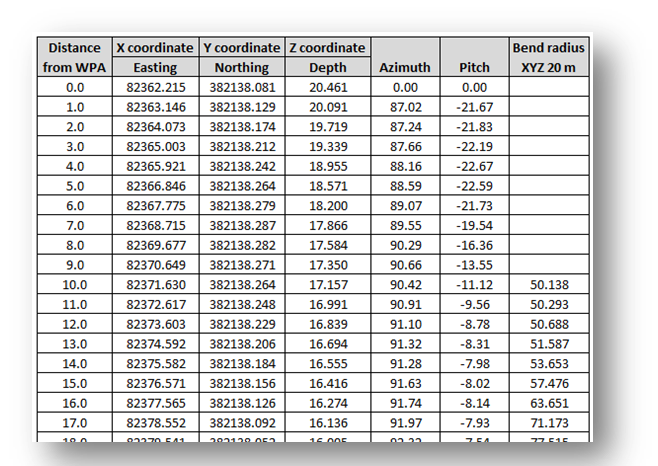

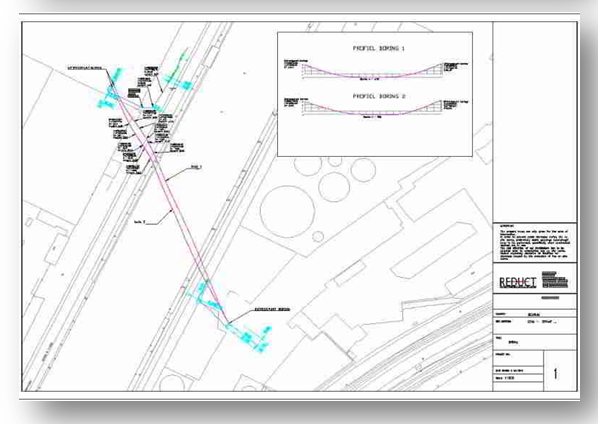

Positional data | : X(Easting),Y(Northing), Z(Depth), (3D) . Depth profile (2D) |
Orientation data | : Azimuth , Inclination |
Pipe feature data | : 2D and 3D Bend Radius information |
Output formats
- AutoCAD script
- Comma Separated Values (MS Excel, Total Station, etc.)
- Bitmap diagnostics and orientation graphs
- XML
